Club 3D Premium High Speed HDMI 2.0 CAC-1360

• Supports 3D resolutions up to 1080p Full HD @ 120HzRPA. 202322 023 data throughput of 18Gbps, three lanes, 6Gbps per lane. Supports up to 32 audio channels for the best audio experience. Supports up to 1536 kHz audio sample frequency for the highest audio quality
• Supports resolutions up to 4096x2160p @ 60Hz

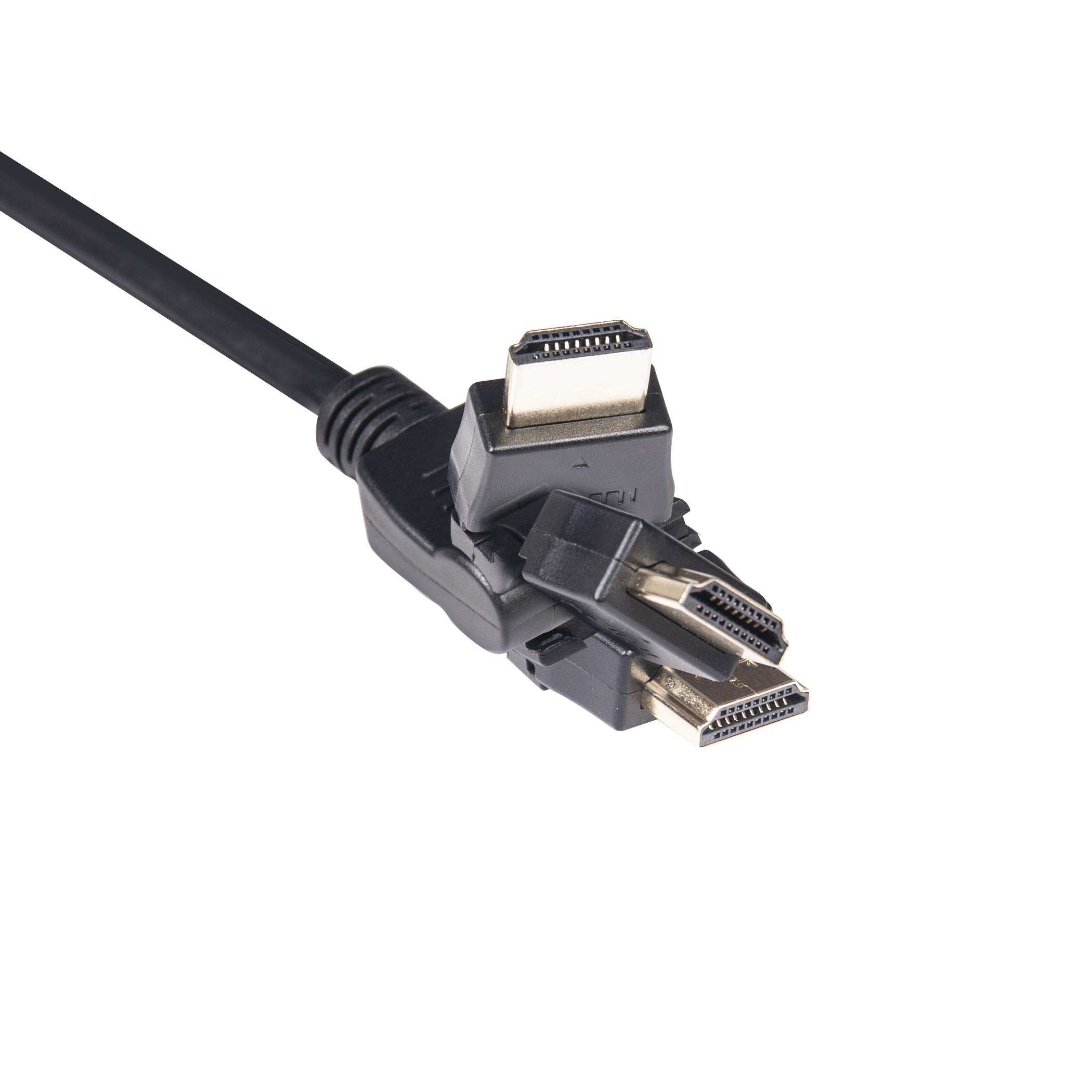

• Equipped with 360 degree swivel connectors
• Compliant with HDMI with Ethernet specification version 2.0

The Club 3D HDMI 2.0 4K60Hz UHD 360° Rotary Cable can be twisted or turned to virtually any position. The Rotator connectors feature a center ball joint design that enables a 360 degree rotation and bending. The CAC-1360 design ensures signal integrity in any position and its flexibility makes it ideal for installations in tight/narrow spaces where standard connectors are hard to fit without having to bend the cable at sharp angles.

It fully supports the HDMI 2.0 with Ethernet specification, ensuring that video up to 4K UHD, 4096x2160p at 60Hz is supported, as well as audio and data streams.
Share

Technical details
-Sustainability certificates: RoHS

Weight & dimensions


-Weight: 111 g
-Package width: 145 mm
-Package depth: 45 mm
-Package height: 145 mm
-Package weight: 51 g
-Package type: Box

Features


-Cable length: 2 m
-Connector 1: HDMI Type A (Standard)
-Connector 2: HDMI Type A (Standard)
-Connector 1 gender: Male
-Connector 2 gender: Male
-Product colour: Black
-Connector contacts plating: Copper
-Quantity per pack: 1 pc(s)
-Connector 1 form factor: Rotating
-Connector 2 form factor: Rotating
-HDMI version: 2.0
-3D: Yes
-Audio Return Channel (ARC): Yes
-HDMI Ethernet channel: Yes
-HDCP: Yes
-Data transfer rate: 18 Gbit/s
-Maximum resolution: 4096 x 2160 pixels
-Maximum refresh rate: 60 Hz
-Plug and Play: Yes
-Certification: ROHS, FCC, CE EMI, WEEE

Logistics data


-Harmonized System (HS) code: 84733080
-Products per master (outer) case: 10 pc(s)
