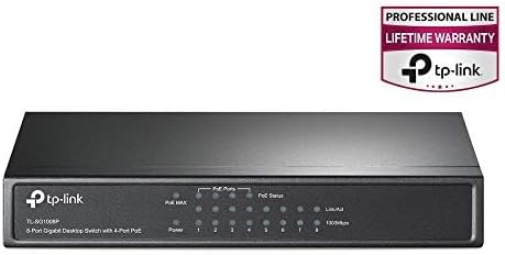

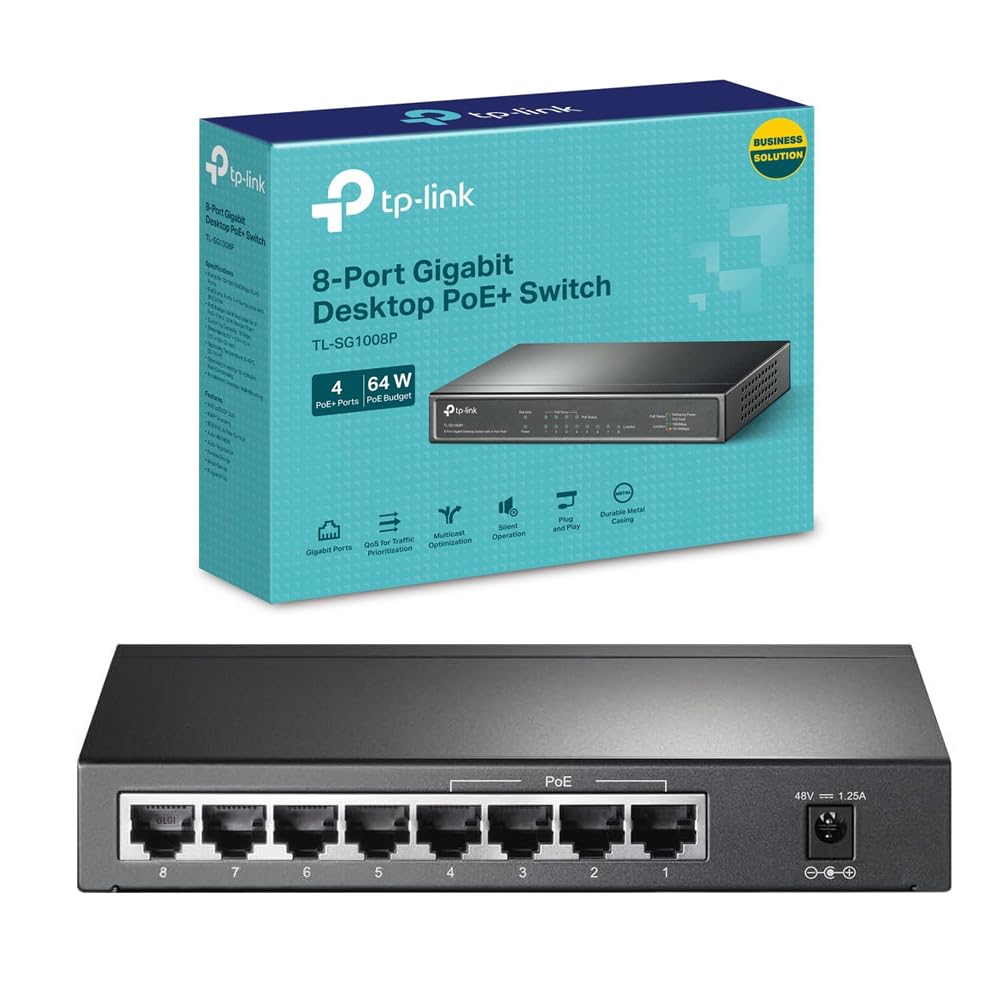

TP-Link PoE Switch 8-Port Gigabit, 4 PoE+ Ports up to 30 W For Each PoE Port and 64 W For All PoE Ports, Metal Casing, Plug and Play, Ideal for IP Surveillance and Access Point(TL-SG1008P

• 8 10/100/1000 Mbps RJ45 ports
• 4 PoE+ ports, transfers data and power on one single cable
• Plug and play, no configuration and installation required
• Works with IEEE 802.3af/at compliant PDs
• 802.1p/DSCP QoS enable smooth latency-sensitive traffic
• Supports PoE Power up to 30 W for each PoE port and up to 64 W for all PoE ports
• Requires no configuration and installation

PRODUCT DESCRIPTION


WHAT THIS PRODUCT DOES
8-Port Gigabit Desktop Switch with 4-Port PoE provides the seamless network connection. It integrates 1000Mbps Gigabit Ethernet and 10/100Mbps Fast Ethernet network capabilities

HOW THIS PRODUCT WORKS
4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

OVERLOAD ARRANGEMENT
TL-SG1008P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 53W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.

EASY TO USE
TL-SG1008P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-LINK TL-SG1008P 8-Port Gigabit Desktop Switch with 4-Port PoE is a great selection for expanding your home or office network.

WHICH SWITCH IS FOR YOU?
TL-SG2210P TL-SG1008PE TL-SG1008P TL-SG2424P TL-SG3424P Interfaces 8 10/100/1000Mbps PoE Ports,2 Combo 100/1000Mbps SFP Slots 8 10/100/1000Mbps PoE+ Ports 4 10/100/1000Mbps RJ45 Ports, 4 10/100/1000Mbps PoE Ports 24 10/100/1000Mbps PoE+ Ports, 4 Combo 100/1000Mbps SFP Slots, 24 10/100/1000 Mbps PoE+ Ports, 4 Combo 100/1000 Mbps SFP Slots, 1 Console Port PoE standards 802.3af 802.3af/at 802.3af 802.3af/at 802.3af/at PoE Power Budget 53W 124W 53W 180W 320W Maximum PoE power per port 15.4W 30W 15.4W 30W 30W Housing Desktop steel case 13-inch rack-mountable/desktop steel case Desktop steel case 19-inch rack-mountable steel case 19-inch rack-mountable steel case Fan Quantity Fanless 1 Fanless 3 3 Switch Capacity 20Gbps 16Gbps 16Gbps 48Gbps 48Gbps VLAN 802.1Q, Voice VLAN 802.1Q, Voice VLAN 802.1Q/MAC-based/Protocol-Based, Voice VLAN IGMP Snooping v1/v2/v3 v1/v2/v3 v1/v2/v3 802.3ad LACP Up to 6 aggregation groups, containing 4 ports per group Up to 6 aggregation groups, containing 4 ports per group 8 aggregation groups, up to 8 ports per group QoS Ports/802.1p/DSC Ports/802.1p/DSC Ports/802.1p/DSCP Access Control List (ACL) Time/Port/MAC/IP-based Time/Port/MAC/IP-based Time/Port/MAC/IP-based

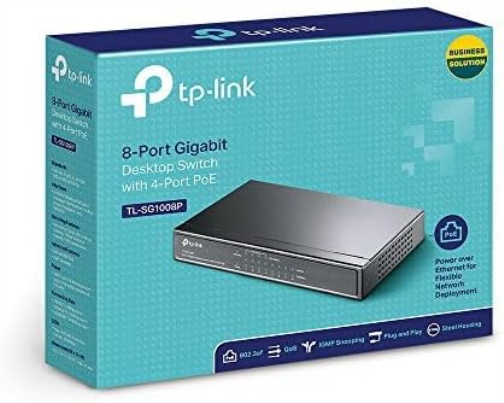

BOX CONTAINS
TP-Link Switch
Power Adapter
User Guide
