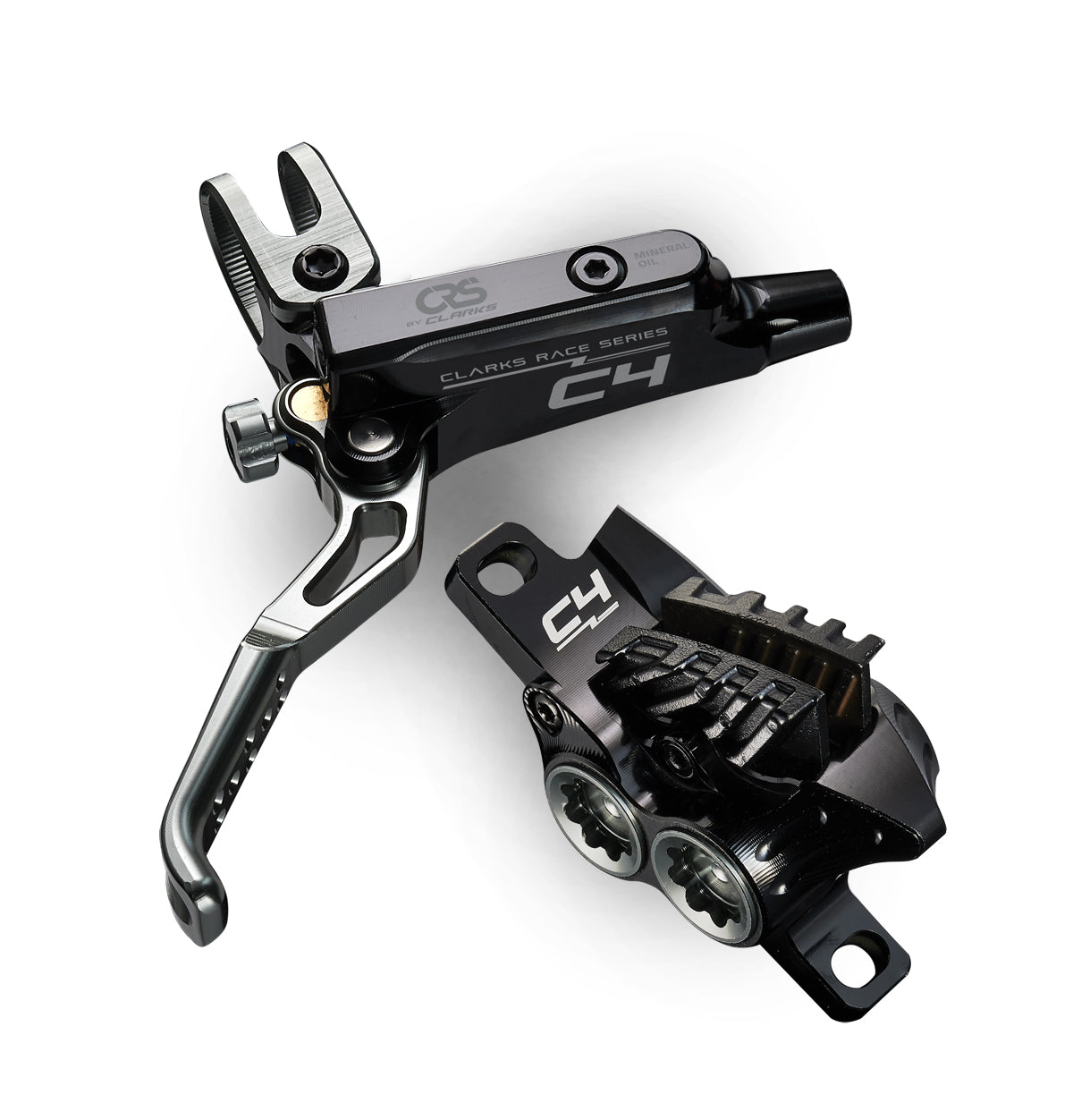

CLARKS RACE SERIES (CRS) C4, 4 Piston Hydraulic Disc Brake Set - UK Configuration

• 4 Piston hydraulic brake system
• Disc pad cooling fins
• 4 x 16mm Self adjusting pistons
• Floating stainless steel rotors
• High quality anodised finish
• Rigid single piece CNC’d calliper
• Suitable for MTB, downhill and e-bikes
• Mineral oil fluid to protect the environment
• 2 Finger ergonomic lever
• ‘On the fly’ lever reach adjustment

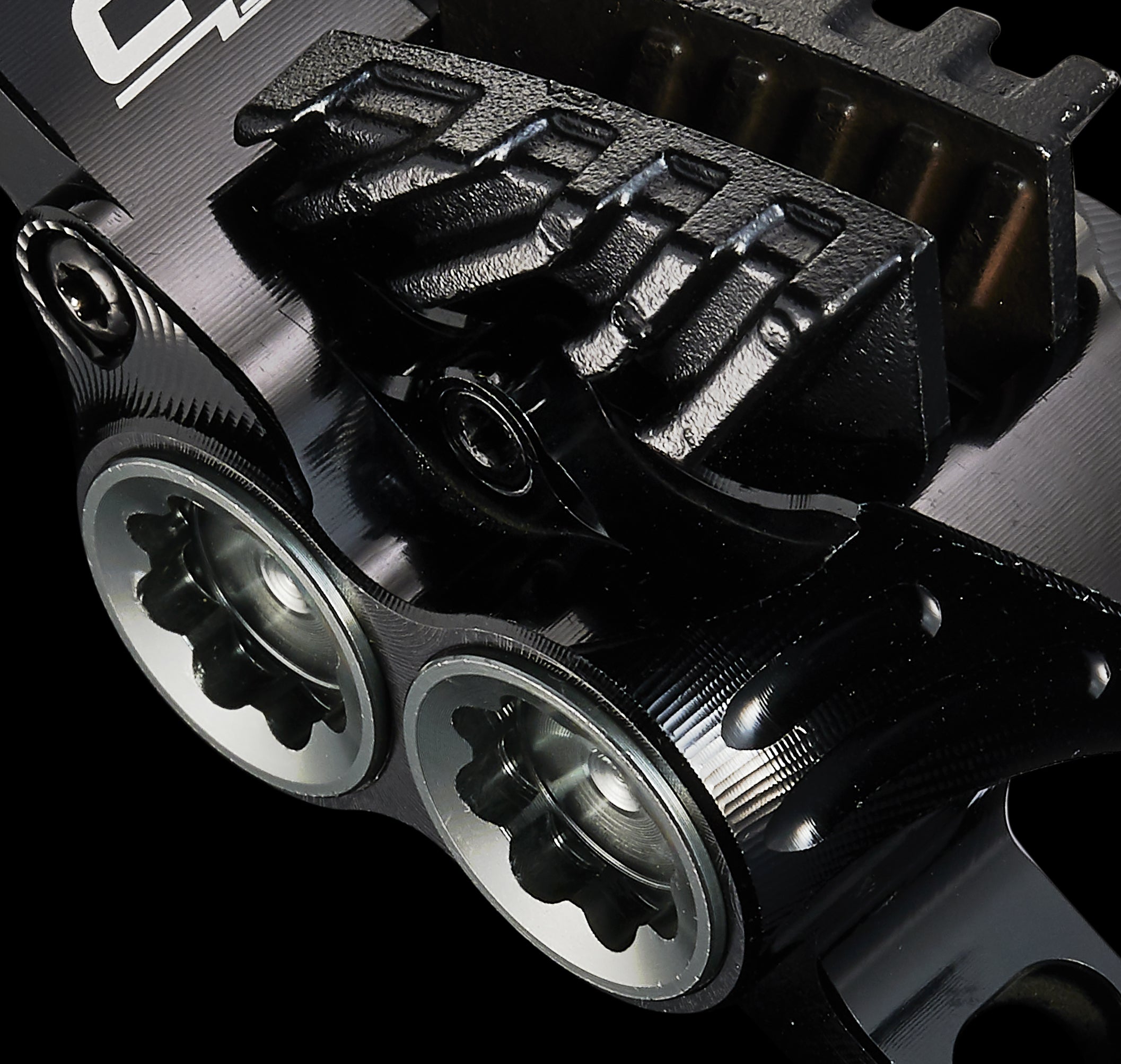

The CRS C4 is a 4 piston hydraulic disc brake that provides the rider with a competition level brake set, featuring full adjustment and modulation. Each caliper has 4 x 16mm stainless steel self-adjusting pistons with machined piston heads for reduced friction operation.

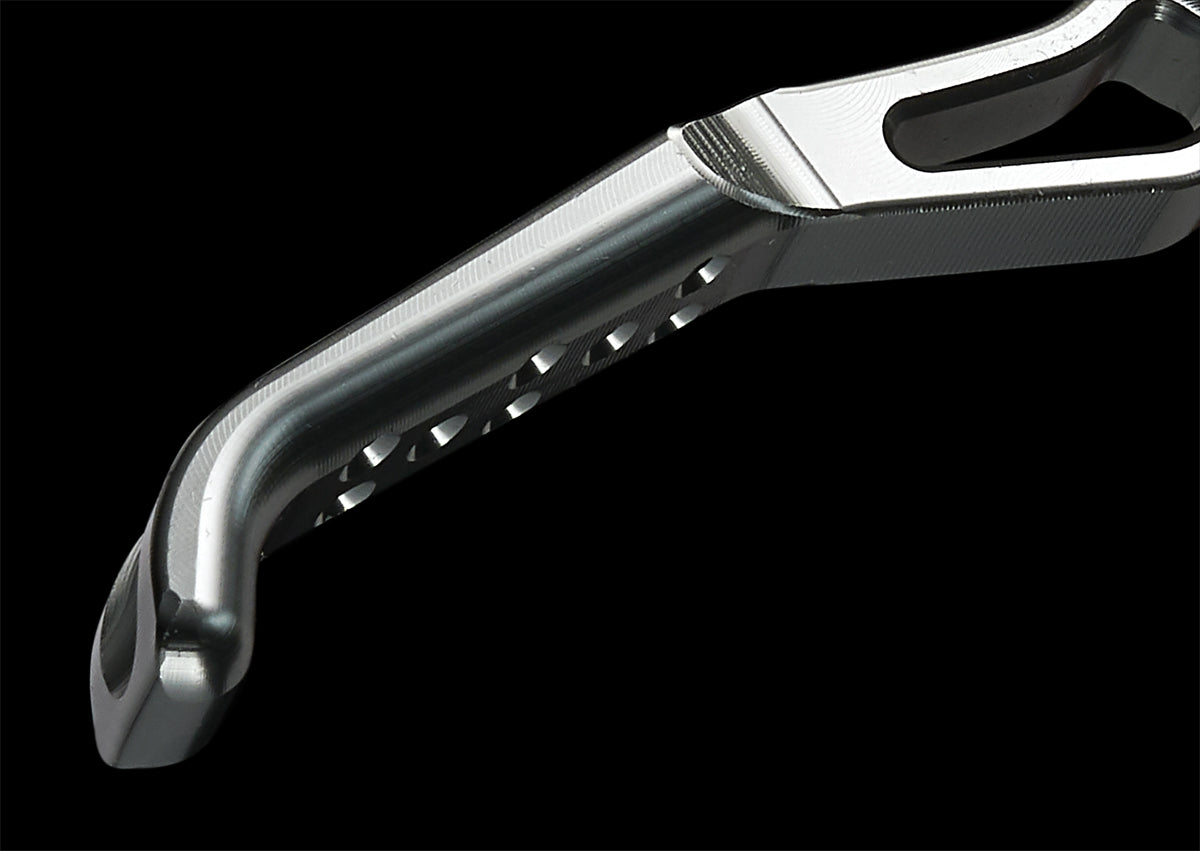

With heat dissipation features designed into the single piece CNC caliper, keeping braking performance consistent and in turn help to reduce pad wear. Lightweight 2 finger brake levers with ergonomic vented lever blades, offer controlled, sensitive braking by using an 'on the fly' lever reach adjustment screw. The C4 is supplied with aerospace grade aluminium floating rotors with stainless steel braking bands, hoses and mineral oil.

Technical specifications

• 4 Piston hydraulic brake system


• Suitable for MTB, downhill and e-bikes


• Rigid single piece CNCâd calliper


• Disc pad cooling fins


• High quality anodised finish


• 4 x 16mm Self adjusting pistons


• 10mm Lever pistons


• 2 Finger ergonomic lever


• âOn the flyâ lever reach adjustment


• Mineral oil fluid to protect the environment

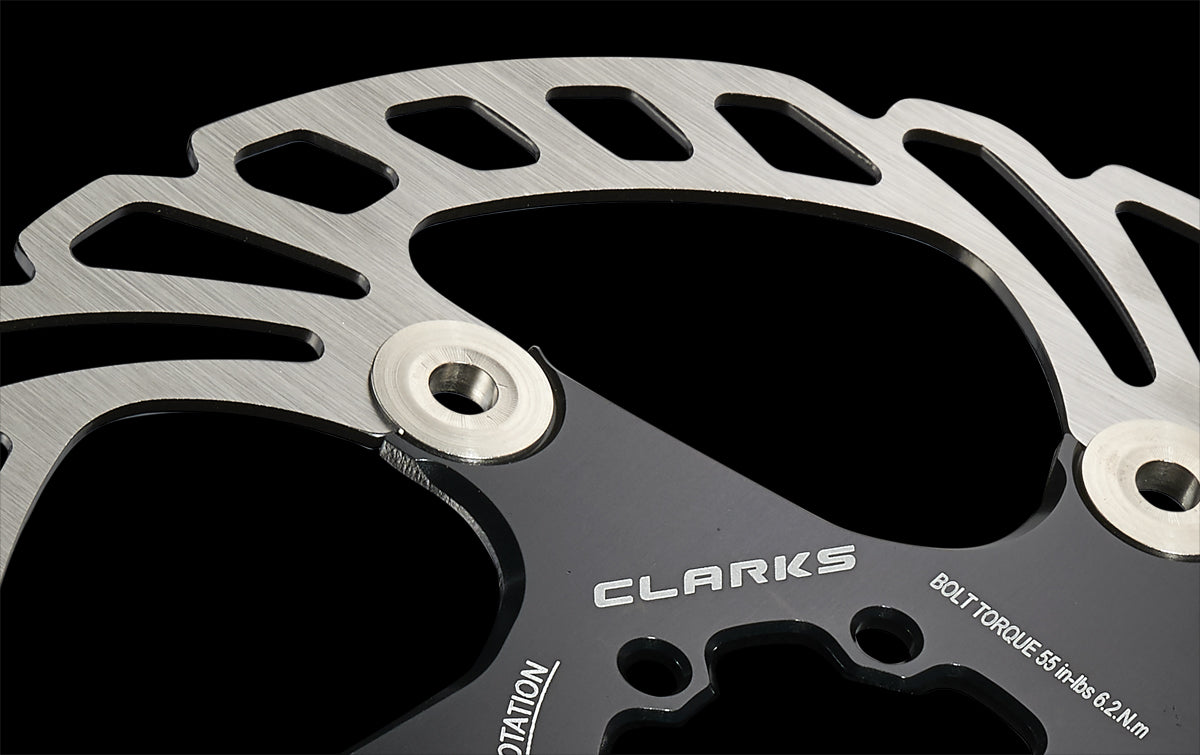

• Floating stainless steel rotors


• Disc pad type: VRX801


• Complies with and exceeds ISO 4210 regulations and EN 15194 regulations.

Box Contents

• X2 Calipers


• X2 Levers


• X2 Rotors and bolts


• X2 Hoses and all fittings

Item Length: 150
Part Type: Bike Spares
Size: 180/160mm
Type: Disc Brakes
Valve Type: Disc Brakes

Material: ‎Various
