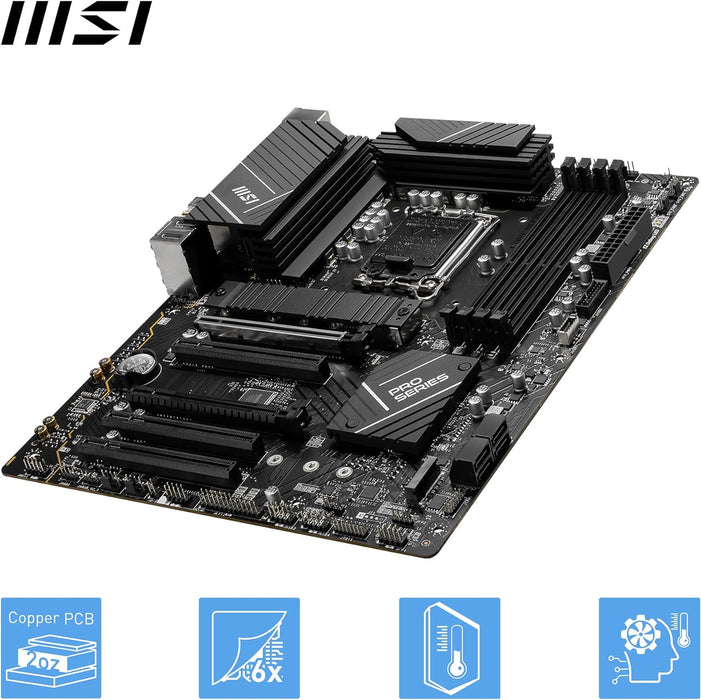

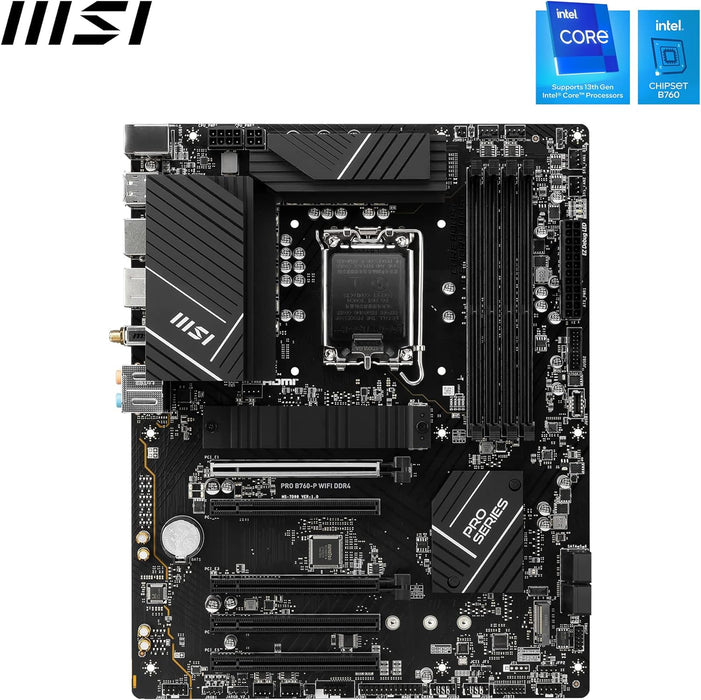

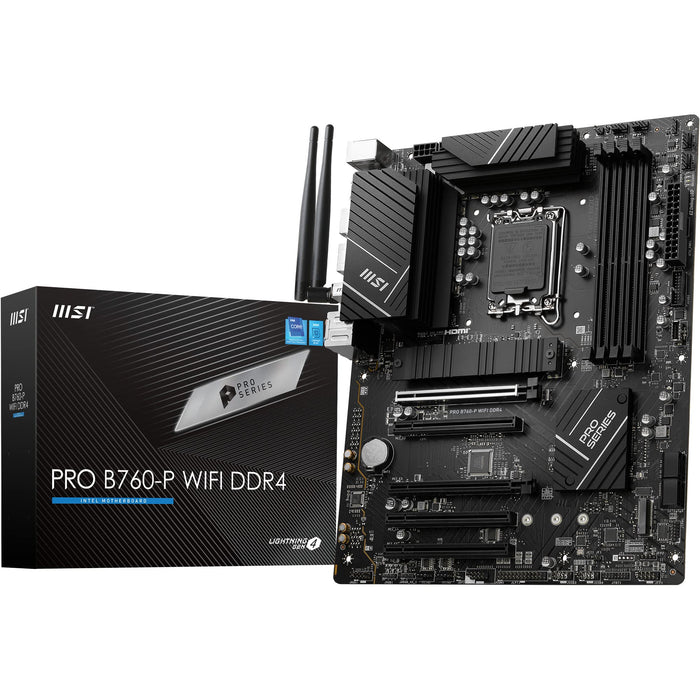

MSI PRO B760-P WIFI DDR4 Motherboard, ATX - Supports Intel 12th & 13th Gen Core Processors, LGA 1700 - DDR4 Memory Boost 5333+MHz/OC, PCIe 4.0 x16 Slots, M.2 Gen4 Slots, 2.5G LAN, Wi-Fi 6E

• 12TH & 13TH GEN CORE - The PRO B760-P WIFI DDR4 (ATX) employs a 12 Duet Rail Power System (P-PAK) VRM for the Intel B760 chipset (LGA 1700, 12th & 13th Gen Core); The VRM features MSI Core Boost technology for improved stability & performance
• INTEGRATED COOLING - VRM cooling features 7W/mK MOSFET thermal pads and an extended heatsink; Includes chipset heatsink, M.2 Shield Frozr, active Frozr AI CPU & GPU responsive cooling, a dedicated pump-fan header & 6-layer PCB with 2 oz. thickened copper

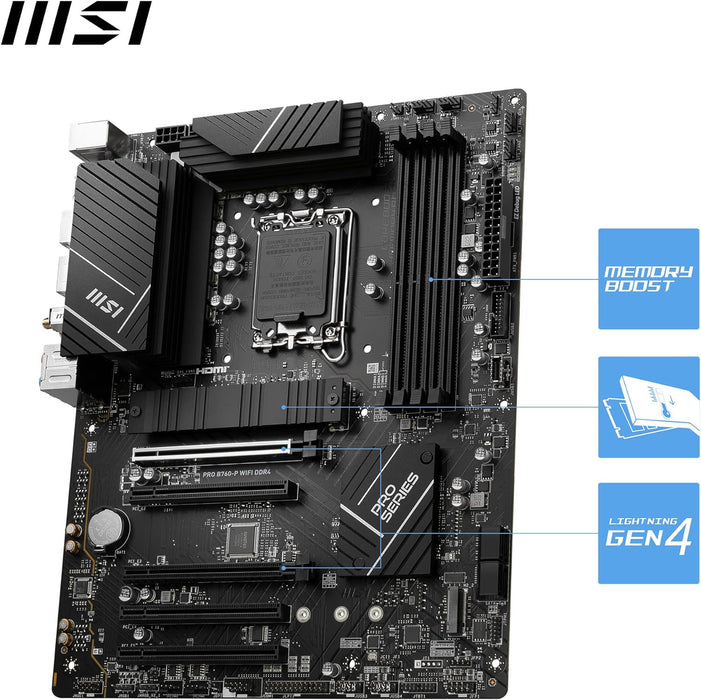

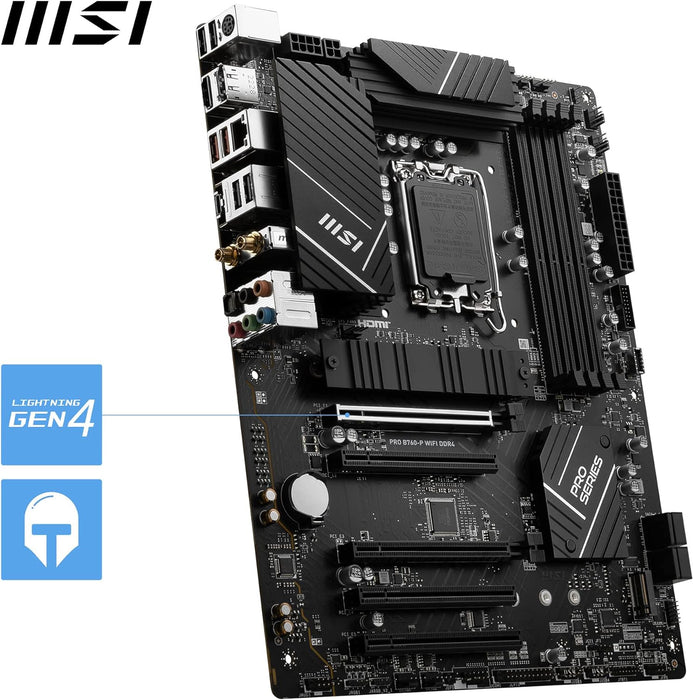

• DDR4 MEMORY, PCIe 4.0 x16 SLOTS - 4 x DDR4 DIMM slots with Memory Boost isolated circuitry for overclocking (1DPC 1R, 5333+ MHz); Primary PCIe x16 slot supports PCIe 4.0 (64GB/s) and includes Steel Armor, secondary PCIe x16 slot also supports PCIe 4.0
• DUAL M.2 CONNECTORS - Storage options include 2 x M.2 Gen4 x4 64Gbps slots; The primary M.2 slot includes Shield Frozr to prevent thermal throttling during hyper-fast SSD access

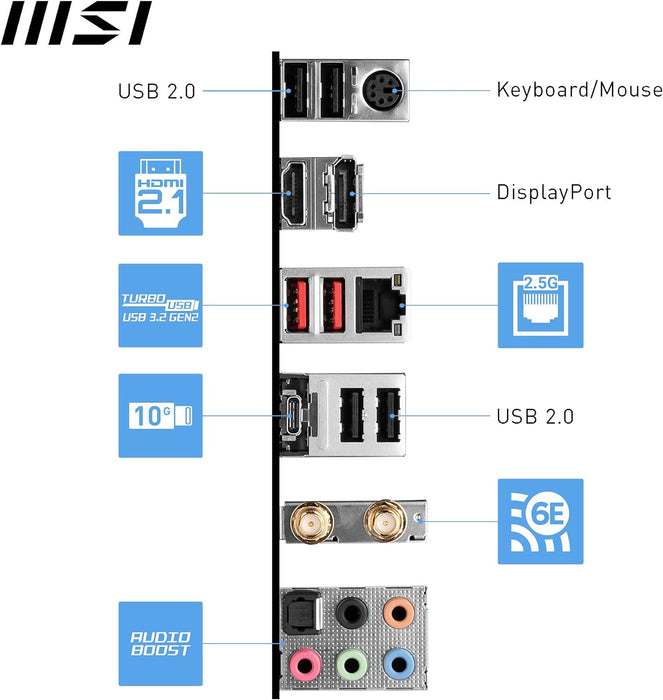

• WI-FI 6E CONNECTIVITY - Network hardware includes an Intel Wi-Fi 6E module with Bluetooth 5.3 & 2.5Gbps LAN; Rear ports include USB 3.2 Gen 2 Type-C & Type-A (10Gbps), HDMI 2.1 & DisplayPort 1.4, and 7.1 HD Audio with Audio Boost

MSI PRO B760-P WIFI DDR4 ATX Motherboard, 4x DDR4 128GB, 5x PCI-E x16, 2x M.2, 4x SATA, 2x USB 3.2 , 4x USB 2.0, 1x USB-C Specifications: CHIPSET INTEL B760 CPU SUPPORT Supports 12th/13th Gen Intel?� Core?�� Processors, Pentium?� Gold and Celeron?� Processors LGA 1700 MEMORY 4x DDR4, Maximum Memory Capacity 128GB Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) ONBOARD GRAPHICS 1x HDMI?�� 1x DisplayPort Support HDMI?�� 2.1, maximum resolution of 4K 60Hz* Support DP 1.4, maximum resolution of 4K 60Hz* EXPANSION SLOT 5x PCI-E x16 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x16 (From Chipset) PCI_E4 PCIe 3.0 supports up to x1 (From Chipset) PCI_E5 PCIe 3.0 supports up to x1 (From Chipset) STORAGE 2x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G port USB 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen1 Type C (Front) 2x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) INTERNAL I/O 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x TBT connector (JTBT, supports RTD3) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen1 Type C OPERATING SYSTEM Support for Windows?� 11 64-bit, Windows?� 10 64-bit PCB DIMENSION ATX 243.84mmx304.8mm
