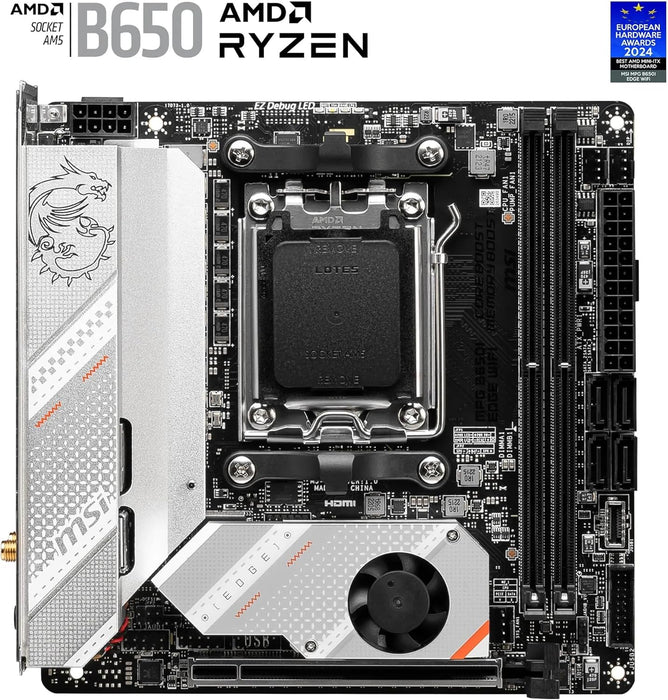

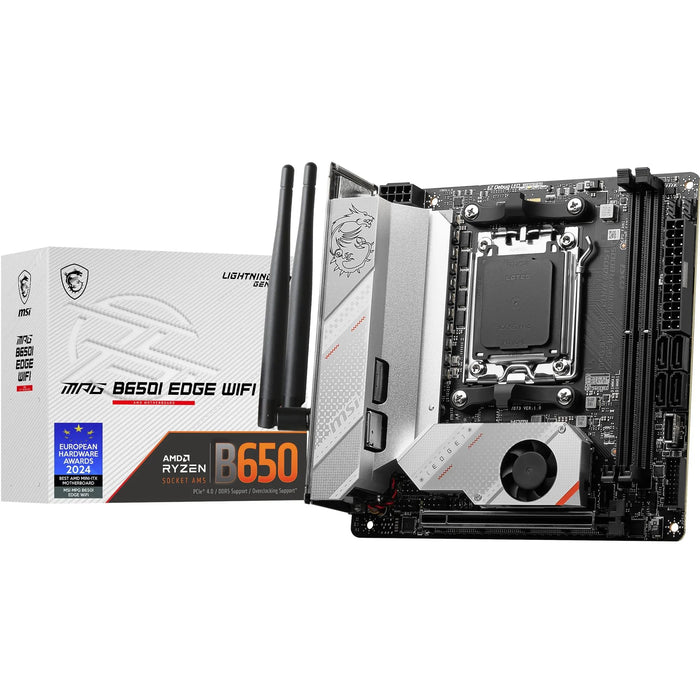

MSI MPG B650I EDGE WIFI Motherboard, Mini-ITX - Supports AMD Ryzen 9000 Series CPUs, AM5 - 8 phases direct CPU power 80A VRM, DDR5 Memory Boost 6600+MHz/OC, 1 x PCIe 4.0 x16, 2 x M.2 Gen4, Wi-Fi 6E

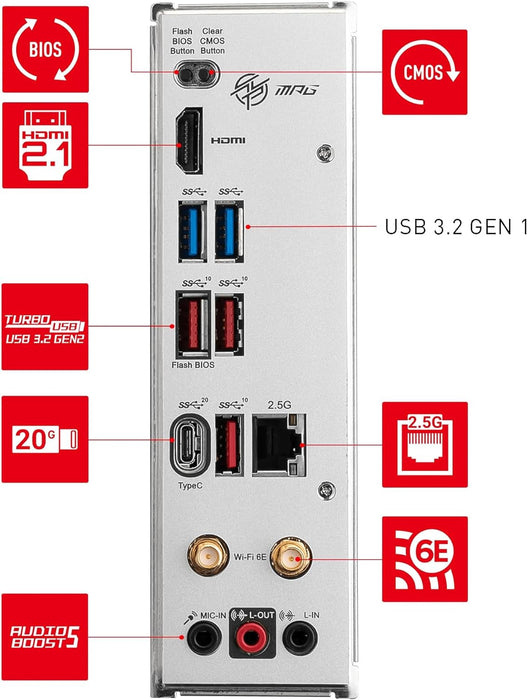

• WI-FI 6E CONNECTIVITY - Network hardware includes Wi-Fi 6E with Bluetooth 5.2 & 2.5Gbps LAN; Rear ports include USB 3.2 Gen 2x2 Type-C (20Gbps), HDMI 2.1, and 7.1 USB High Performance Audio with Audio Boost 5
• POWERFUL VRM, Ryzen 7000 READY - The MPG B650I EDGE WIFI employs an direct 8+2 phase VRM with 80A Smart Power Stage for the AMD B650 chipset (AM5, Ryzen 7000 ready); Core Boost architecture supports multi-core overclocking

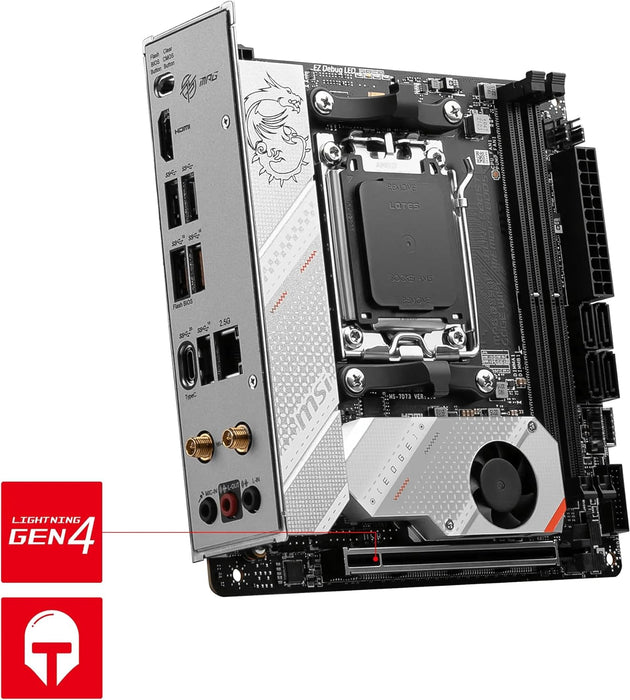

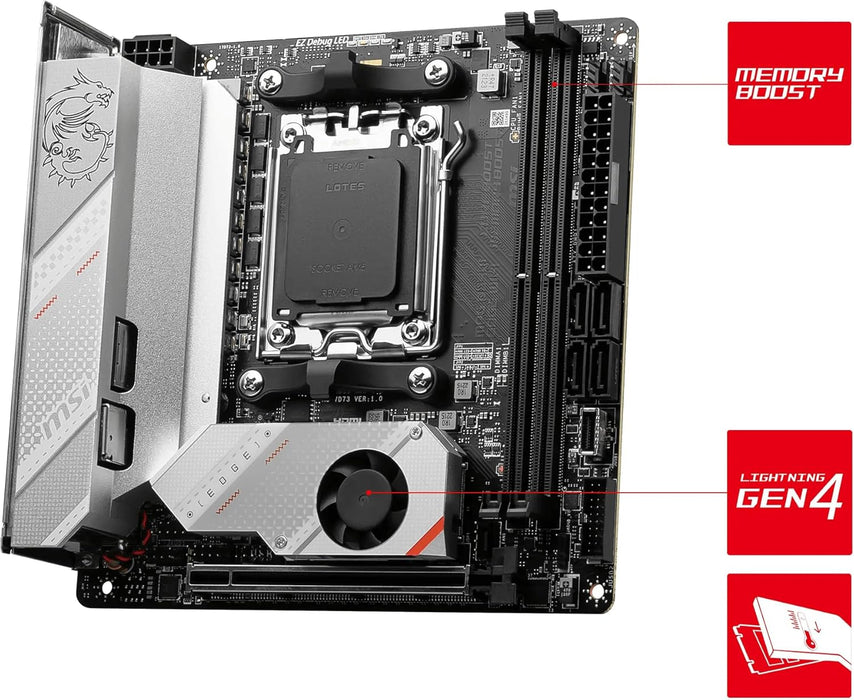

• DDR5 MEMORY, PCI-E 4.0 x16 SLOT - 2 x DDR5 DIMM SMT slots enable extreme memory overclocking speeds (1DPC 1R, 6600+ MHz); 1 x PCIe 4.0 x16 Steel Armor slot (64GB/s) supports graphics card

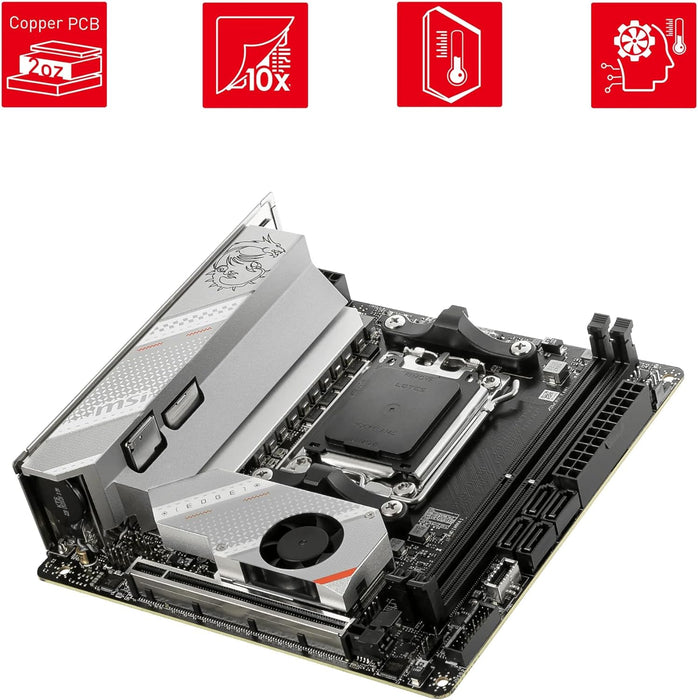

• INTEGRATED COOLING - VRM cooling features 7W/mK MOSFET thermal pads and an extended heatsink; Additional cooling includes chipset heatsink, M.2 Shield Frozr, a dedicated pump-fan cooling header & 10-layer PCB with 2 oz. thickened copper
• DUAL M.2 CONNECTORS - Premium storage options consist of 2 x M.2 Gen4 x4 64Gbps slots with Shield Frozr to prevent SSD thermal throttling

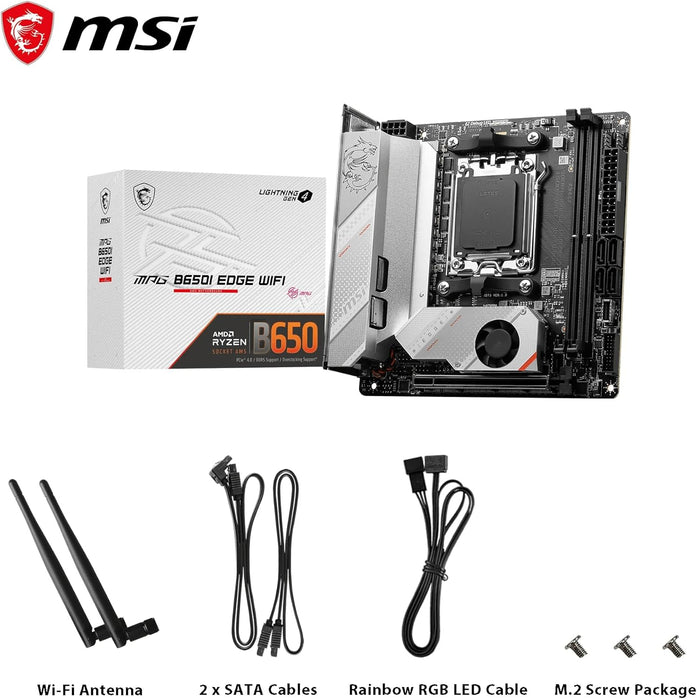

MSI MPG B650I EDGE WIFI AMD AM5 M-ITX Motherboard, 2x DDR5 64GB, 1x PCI-E x16, 2x M.2, 4x SATA, 2x USB2.0, 5x USB 3.2, 1x USB-C CHIPSET AMD B650 CPU SUPPORT Supports AMD Ryzen 7000 Series Desktop Processors Socket AM5 MEMORY 2x DDR5, Maximum Memory Capacity 64GB Memory Support DDR5 6600+(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz Max. overclocking frequency: 1DPC 1R Max. speed up to 6600+ MHz 1DPC 2R Max. speed up to 6000+ MHz Support Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO ONBOARD GRAPHICS 1x HDMI Support HDMI 2.1 FRL, maximum resolution of 4K 120Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. EXPANSION SLOT 1x PCI-E x16 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) MULTI-GPU Supports AMD MULTI-GPU STORAGE 2x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G port RAID Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices USB 2x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) LAN Realtek RTL8125BG 2.5Gbps LAN PCB DIMENSION Mini-ITX 170mmx170mm
