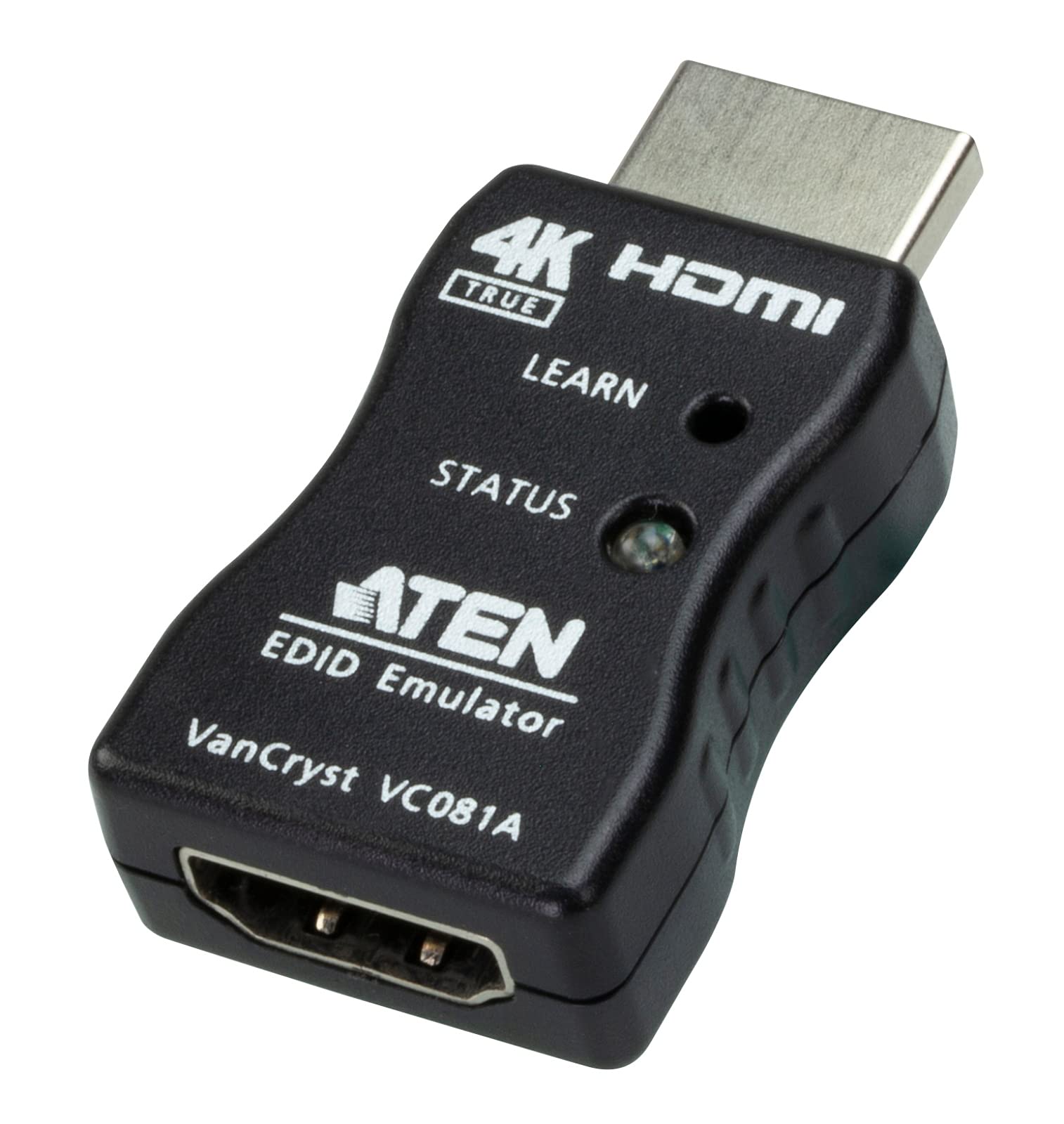

True 4K HDMI EDID Emulator Adapter VC081A ATEN up to 3840 x 2160 @ 60Hz (4:4:4

• Powered by HDMI source
• Compact and lightweight design
• LED indicators to show learning status
• Effectively learns and saves the EDID from the connected HDMI display via single pushbutton and relays it to the video source
• Compliance HDMI (3D, Deep Color, True 4K) HDCP 2.2 Compatible Consumer Electronic Control (CEC)
• Superior video quality – up to 3840 x 2160 @ 60Hz (4:4:4)
• Manages EDID communication between connected devices

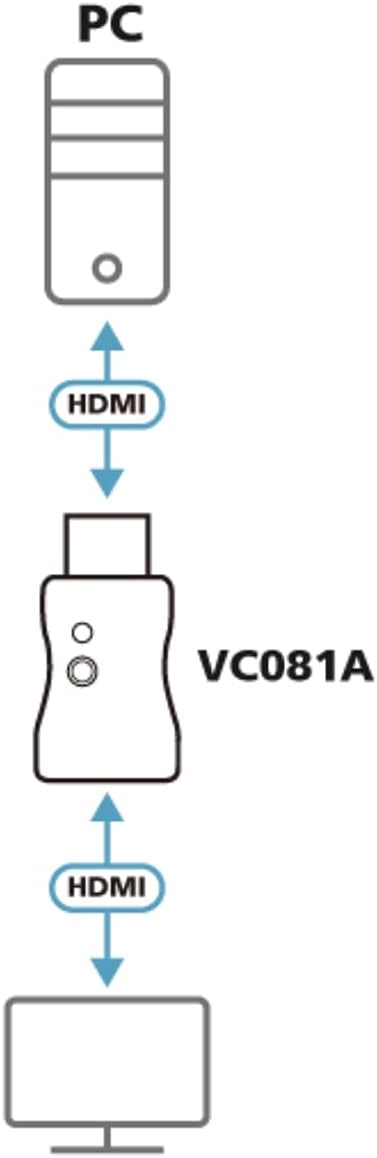

As a True 4K HDMI EDID Emulator Adapter , the VC081A is designed to emulate and store one set of the EDID from the connected display while facilitating 4K video transmission. By learning the EDID from the HDMI display and relaying it to the video source, the VC081A helps to eliminate video communication problems that occur due to the EDID data synchronization failure between the HDMI video source and the connected display. This new member contains a unique “Learn Button Switch” to allow EDID to be effectively learned and saved. Once the EDID is learned, the VC081A can be used to keep a PC or server awake from a remote location over IP instead of the monitor. The VC081A is an ideal device for avoiding blank or blink display issues led by communication errors between sources and displays when integrating a Pro AV system. Package Contents 1x VC081A HDMI EDID Emulator 1x user instructions
