DIGITUS Network Switch - 8-Port Fast Ethernet - 1 SFP-Uplink - DIN-Rail Mounting - Terminal Block - Fanless - Black/Blue

• Ensures reliable data transmission
• Using Delayed Mode technology. The switch supports a large number of protocols
• The use of high-quality photoelectric integration module ensures good transmission rates for both optical and electrical connections.
• Supports Full Duplex or Half Duplex mode, with self-negotiation function
• Network connexion supports automatic cross identification

The DN-651132 is an 8+1 port Ethernet switch suitable for industrial applications (IP40) that offers interference-free data transfer performance in harsh industrial environments.

- The use of a high-quality photoelectric integration module ensures good transmission rates for optical and electrical connections.
- Ensures reliable data transmission
- Supports full-duplex or half-duplex mode, with automatic negotiation
- Network connection supports automatic cross-identification
- Uses "Store and Forward" technology The switch supports a variety of protocols
- complies with industrial operating standards
- Operating voltage: DC 12-48V
- Lightning surge protection (power): 5000A(8/20μs)

DN-651132 is an industrial Fast Ethernet switch with 8 port 10/100Mbps RJ45 +1 port 100Mbps base-FX. The industrial switch has the operating temperature of -40℃ 80℃, is ruggedized and can be used in all kinds of harsh environments. The switch can be easily installed on a free DIN rail. The wide temperature range, IP40-rated housing and LED indicator make the DN-651132 an industrial-grade plug-and-play device that provides users with a reliable and convenient solution for networking their Ethernet devices.

Ports & interfaces
-Basic switching RJ-45 Ethernet ports quantity: 8
-Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
-Fast Ethernet (copper) ports quantity: 8
-SFP module slots quantity: 1
-Uplink ports quantity: 1
-Power connector: Terminal block (6-pin)

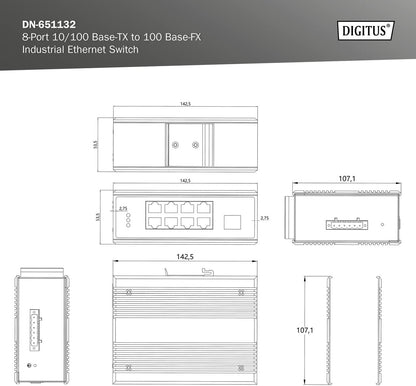

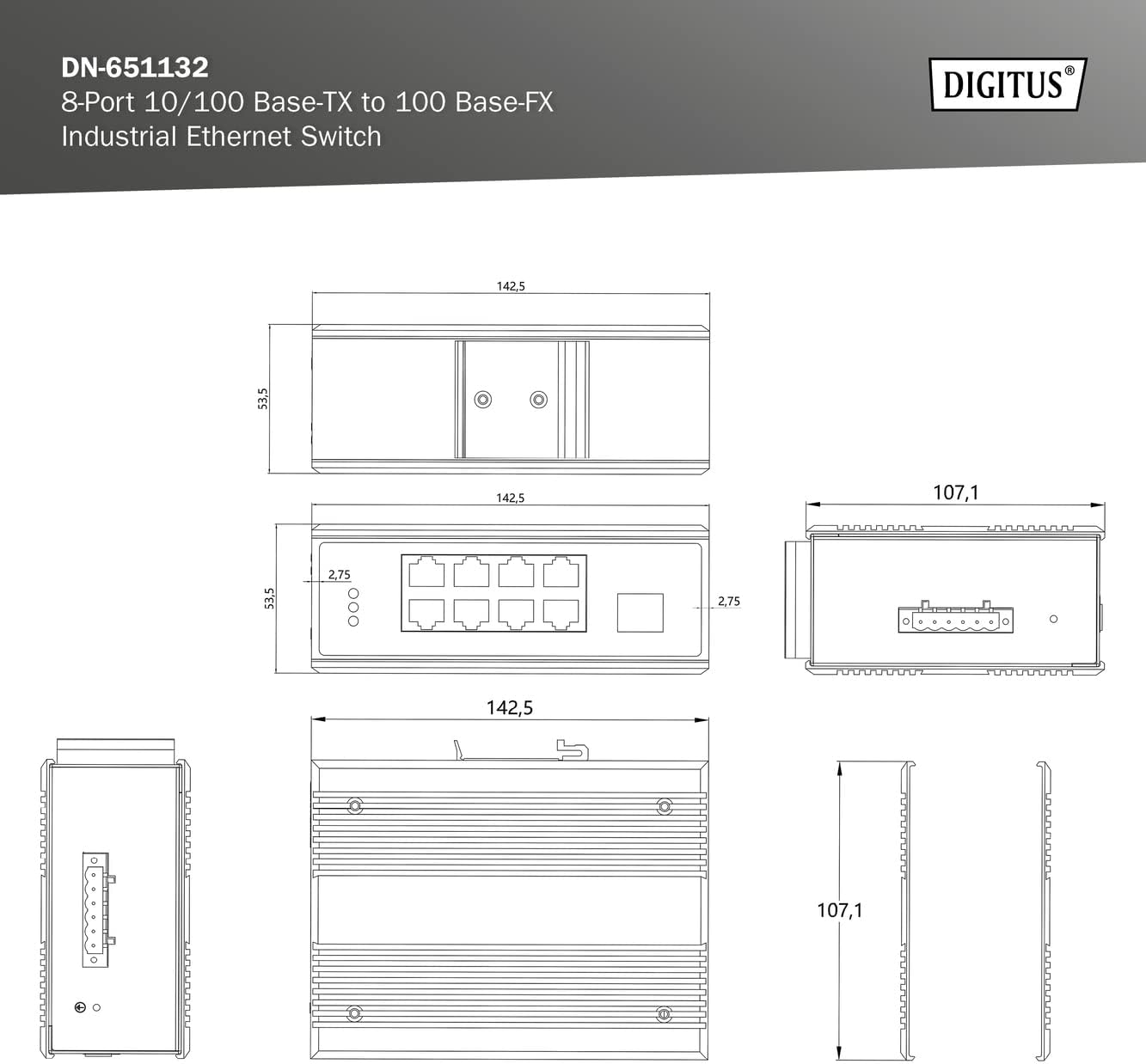

Weight & dimensions


-Width: 143.7 mm
-Depth: 103 mm
-Height: 44.2 mm
-Weight: 560 g

Power


-Power source: DC
-DC input voltage: 12 - 52 V
-Power consumption (typical): 3 W

Operational conditions


-Operating temperature (T-T): -40 - 80 °C
-Storage temperature (T-T): -40 - 80 °C
-Operating relative humidity (
