• Material: 6061-T6 aluminum brackets
• Torque: 3-4 Nm
• Max Load: 1700g per base
• Made in the USA
• Anodized to match other Wolf Tooth products

Bases are the foundation for the B-RAD system and the rest of the B-RAD system mounts to them

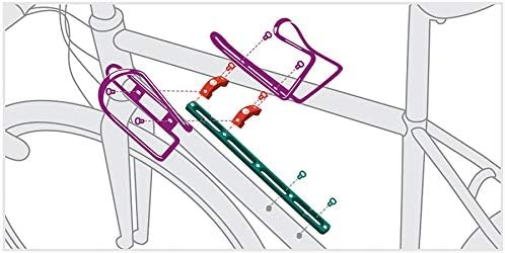

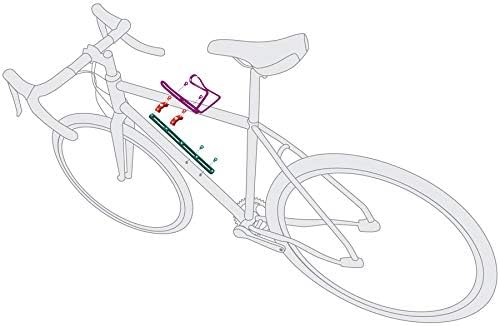

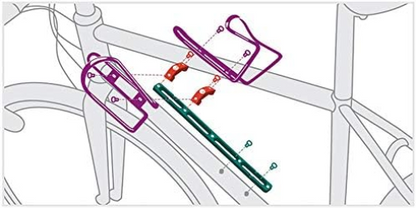

* Reposition bottle cages using existing bottle cage mounts on your bike


* Lightweight, durable, rust-proof materials


* Customize storage to your specific needs with flexible B-RAD system



B-RAD 2

* The 2-Slot Base can move bottle or other accessory to an optimal location even on a smaller or dual suspension frame



B-RAD 3

* The 3 slot base with 4 threaded holes provides additional adjustment and mounting options. A typical application would be to mount a bottle cage in the forward threaded holes with a B-RAD accessory tucked behind it. This mounts perfectly to triple bottle mounts on frames and forks. The B-RAD 3 includes a zip tie, channels for the zip tie, and a foam pad for secure mounting

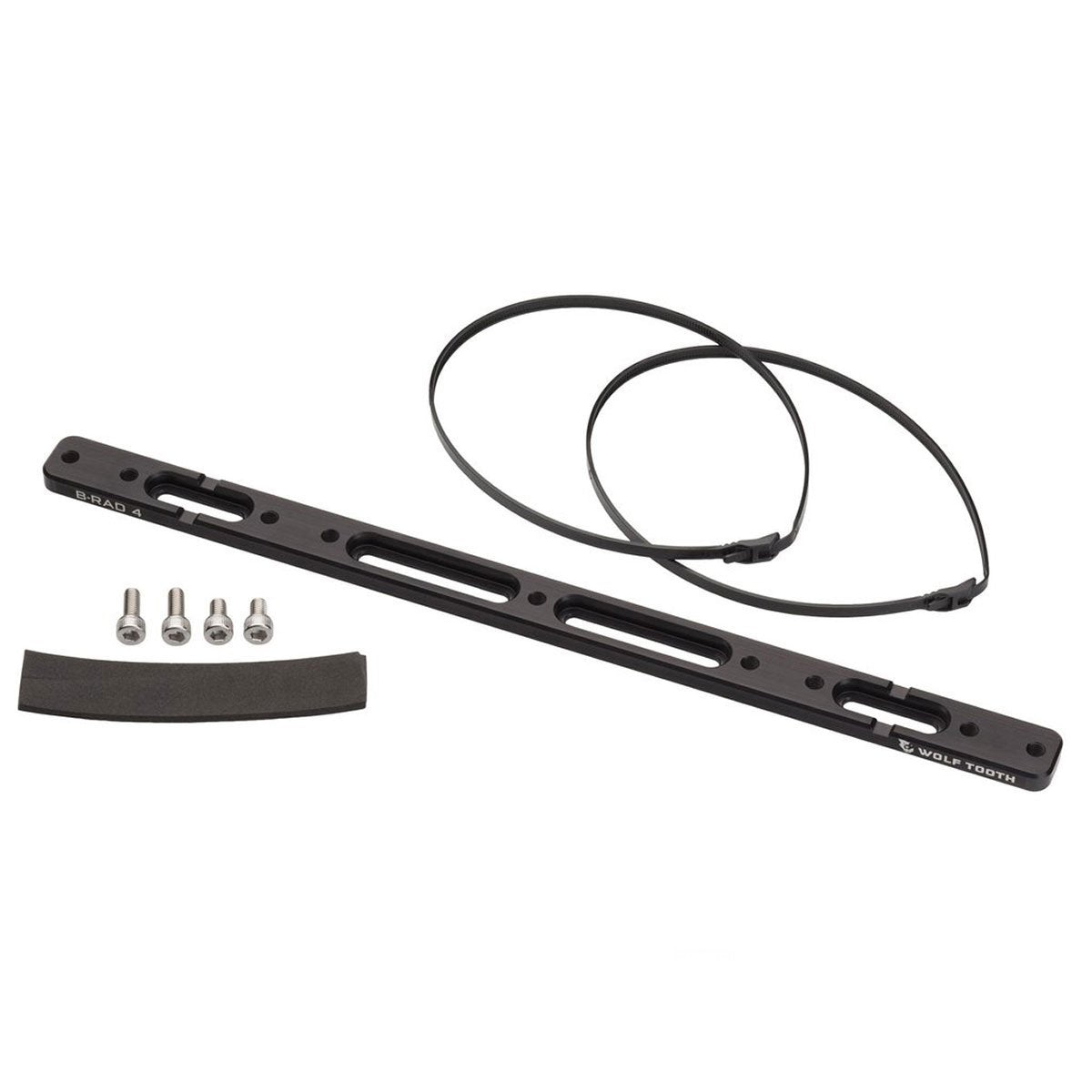

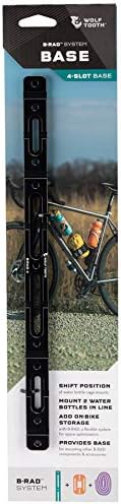

B-RAD 4

* The 4 slot base is the longest base with 9 threaded holes for the ultimate flexibility and capacity. It′s long enough to mount 2 small bottles inline or multiple accessories. The B-RAD 4 includes zip ties, channels for the zip ties, and a foam pad for secure mounting



Compatibility

* Mounting any of the bases requires the use of at least 2 standard threaded bottle cage mounts. B-RAD 3 and 4 should use the auxiliary foam pad (to protect your frame) and zip tie to secure the base. Any other mounting methods are not recommended


* You may need a Problem Solvers Space Out Kit or similar method to clear the front derailleur clamp. Be sure to use bolts with additional length equivalent to the extra spacing added.


* Compatible with any frame that uses standard 64mm spacing bottle cage braze-ons
Item Length: 330
Part Type: Bike Spares
Type: Accessories
