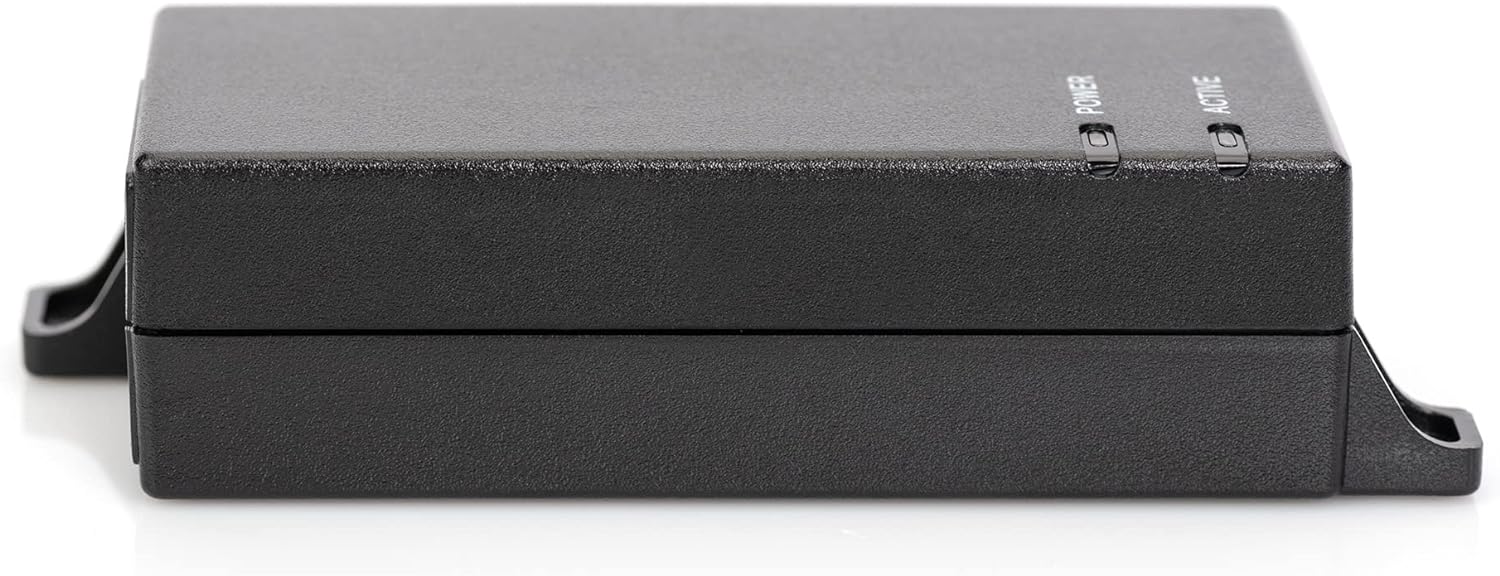

DIGITUS PoE Injector - IEEE802.3af - Gigabit Ethernet - 15.4 Watt - Max. 48 Volt - Power Supply Pin 4/5 (+) & 7/8

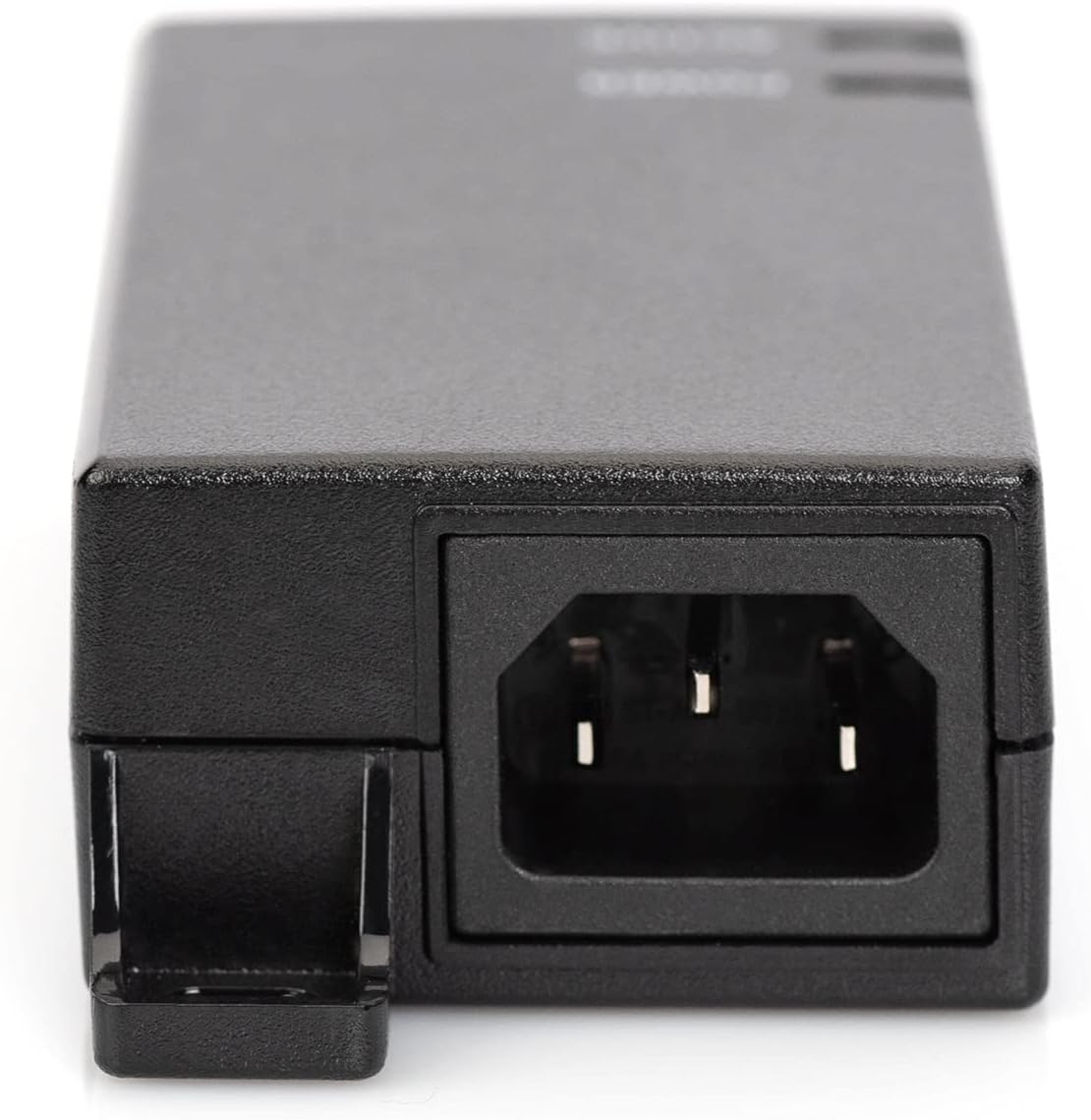

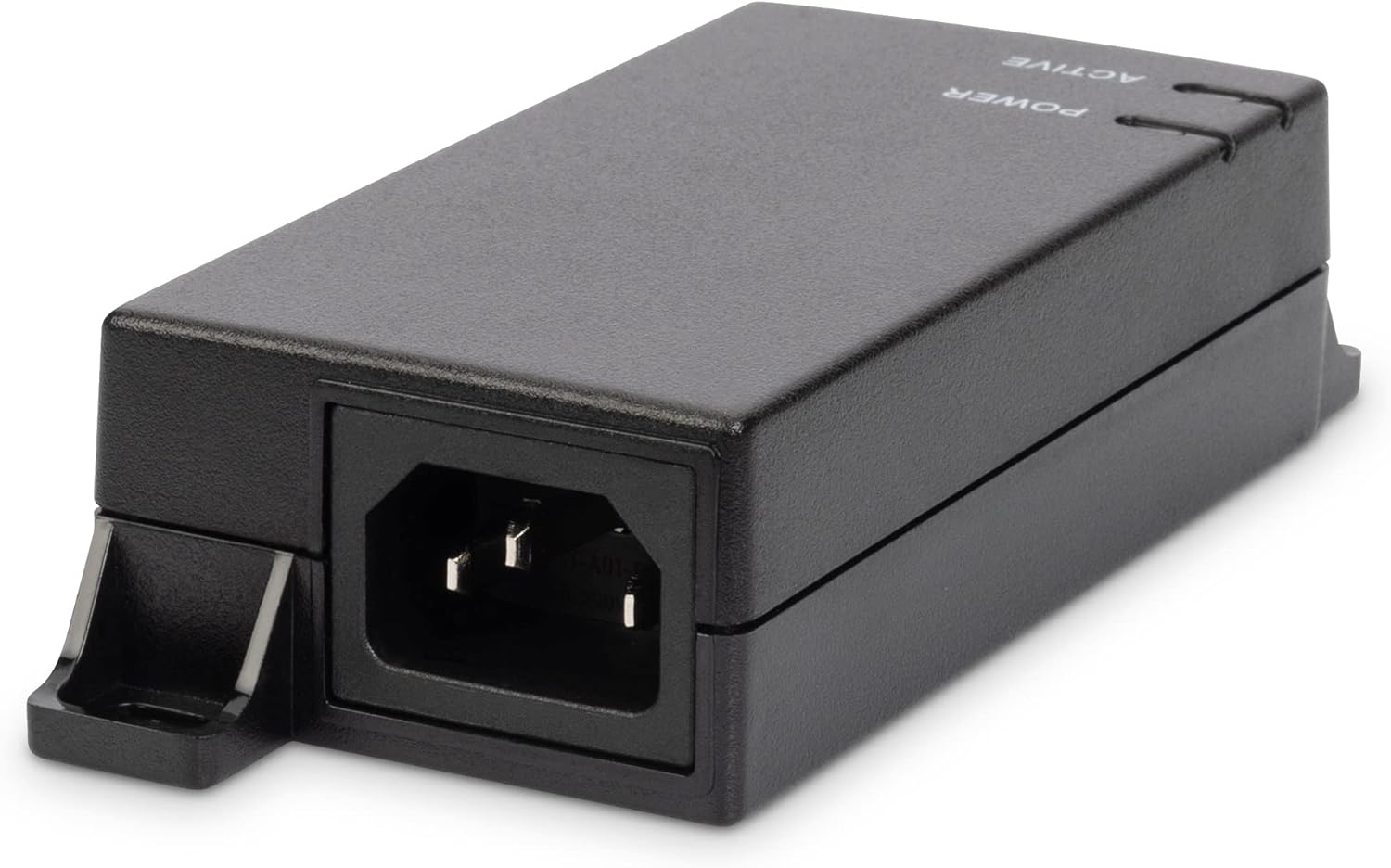

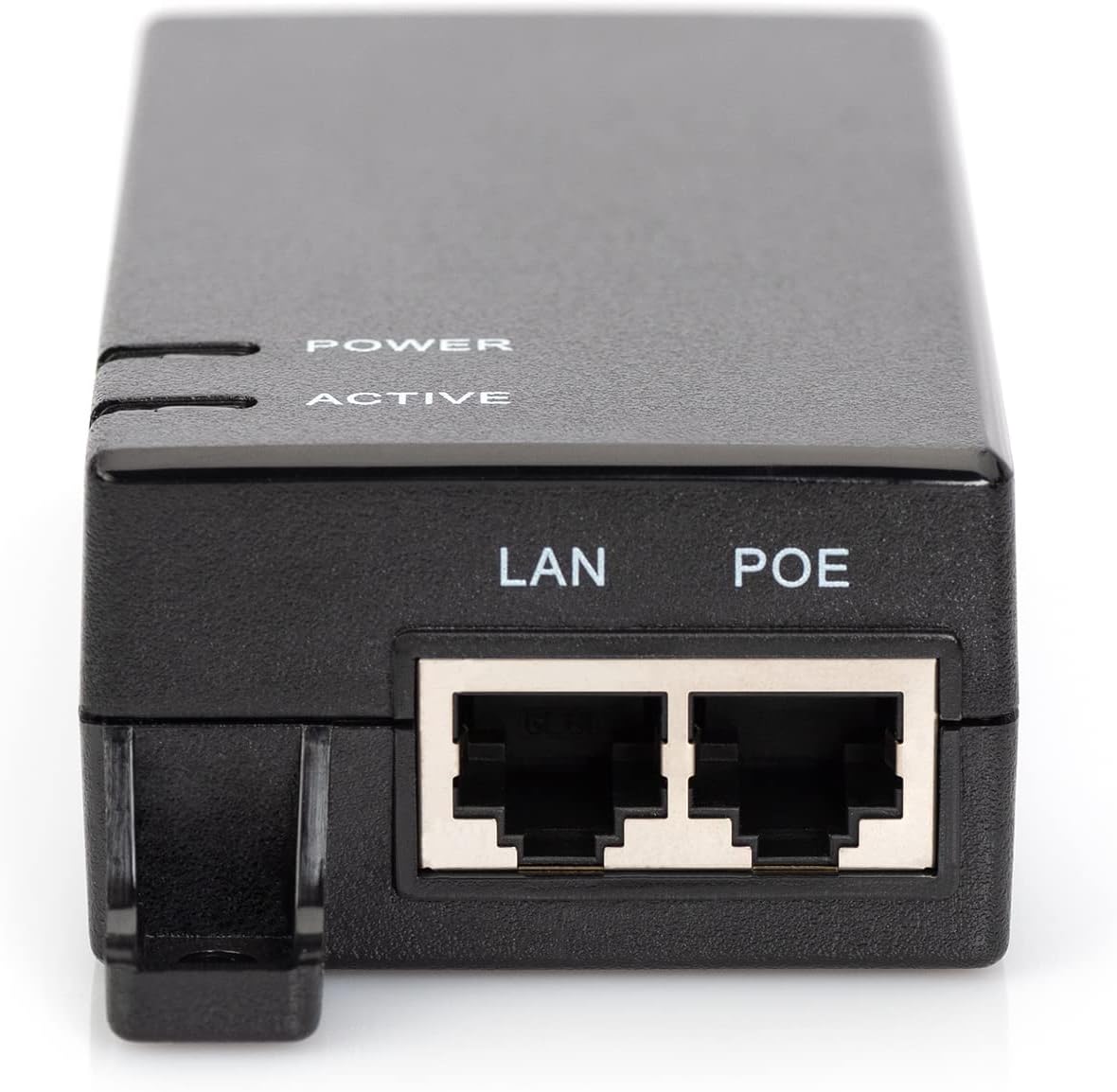

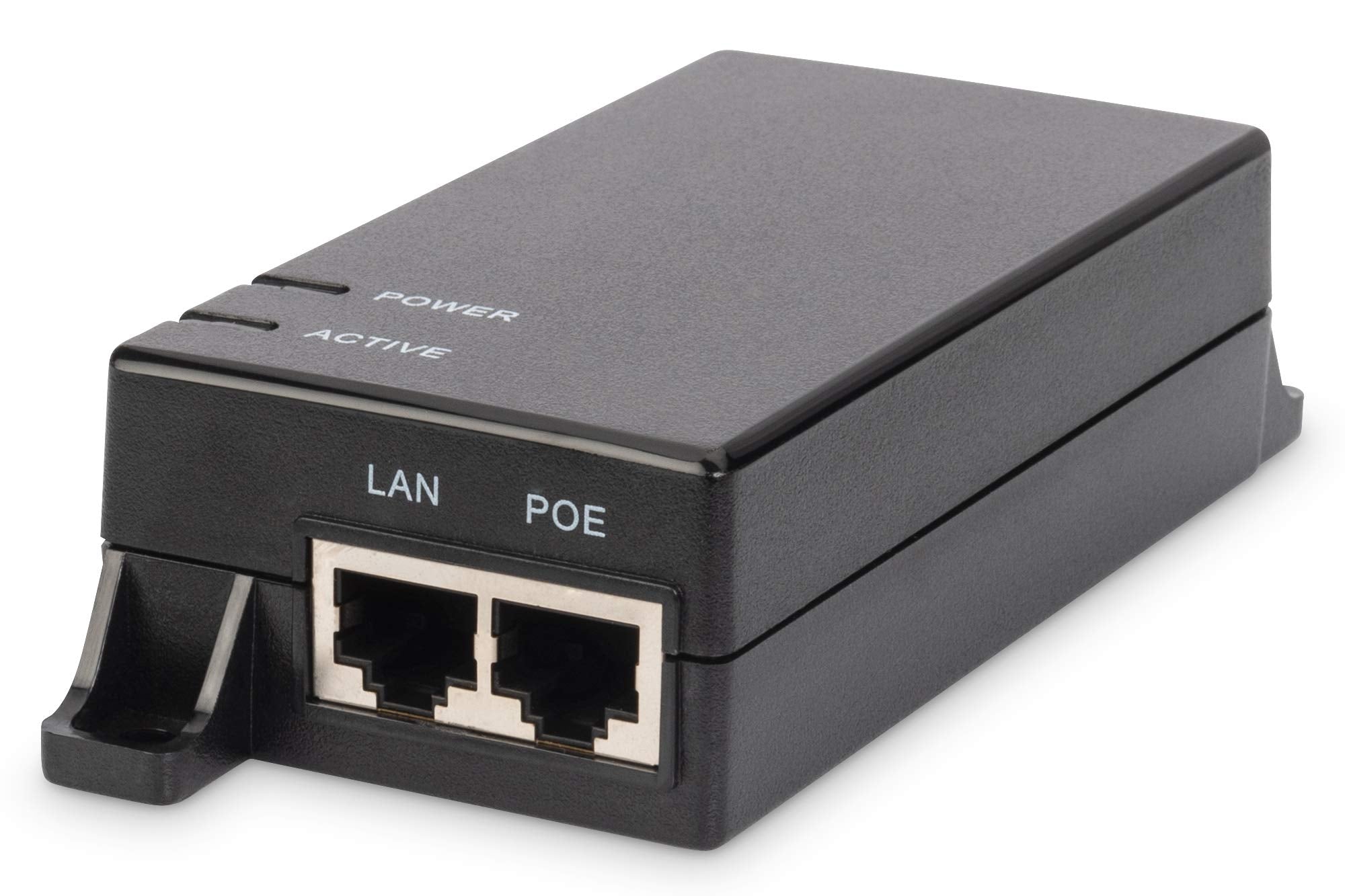

• Two RJ45 sockets and a IEC connection are embedded in the plastic housing - Power supply via pin 4/5(+) & 7/8(-) is via the marked "PoE" network socket.
• The power consumption of the injector itself is max. 1.6 Watt - A IEC connection cable is included.
• This PoE injector complies with Gigabit Ethernet standard with a data transfer rate of 1 Gbps and has a maximum output voltage of 48 V and a power output of 15.4 W.
• The PoE output has current limitation, short circuit protection and automatic terminal device detection and classification.
• PoE is preferably used when power is not possible at the operating site and suitable devices can also be supplied with power via the incoming network cable at the same time.

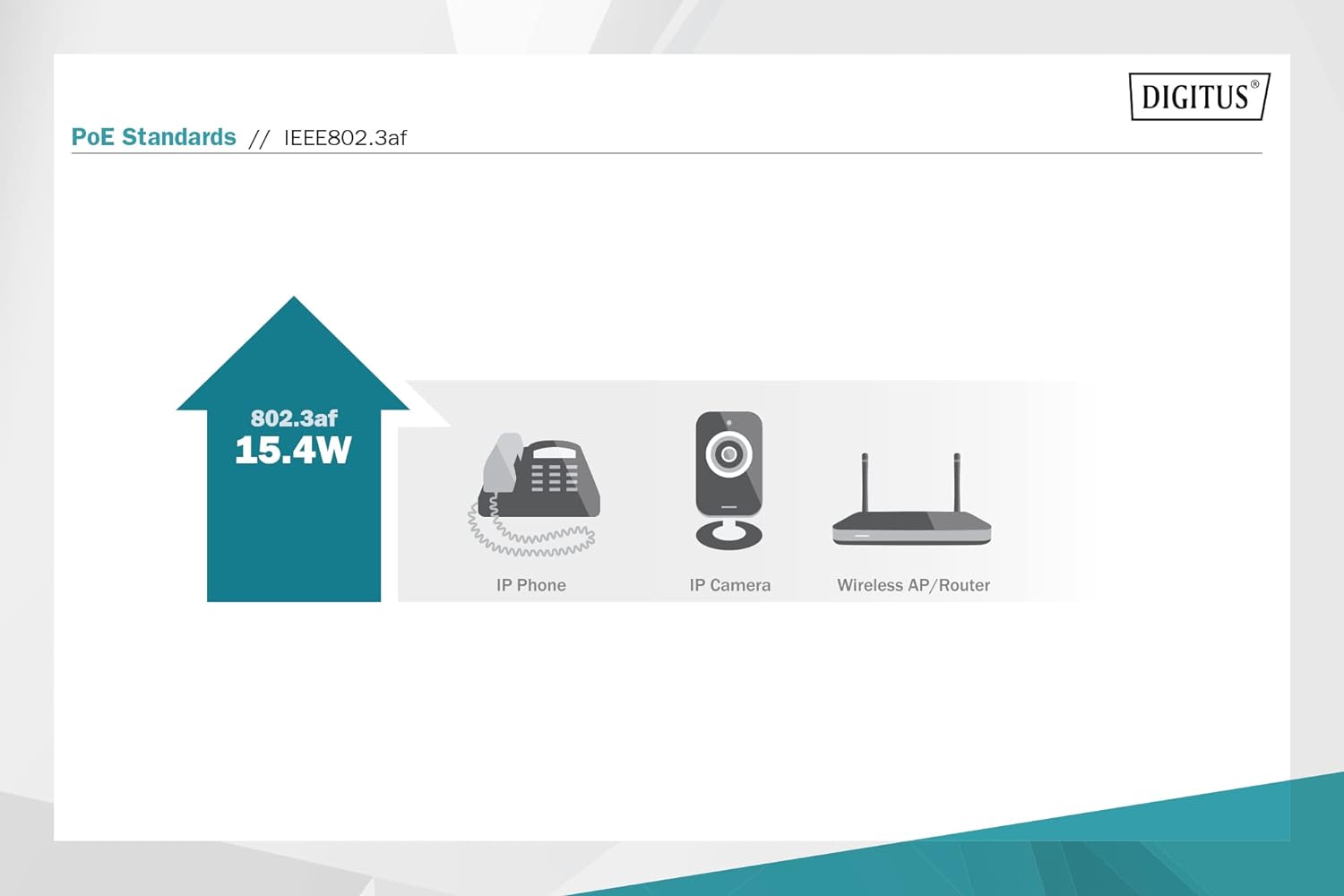

DIGITUS PoE Injector - IEEE802.3af - Gigabit Ethernet - 15.4 Watt - Max. 48 Volt - Power supply pin 4/5(+) & 7/8(-) With the help of the DIGITUS PoE injector, you minimize your wiring effort when installing PoE-enabled devices such as IP network cameras. The data and the power supply for the devices are only supplied via an Ethernet line. This eliminates the need to lay a separate power line and you are able to extend your network even where there are no sockets or power lines. The injector is fully compliant with the IEEE 802.3af PoE standard and delivers an output power of 15.4 watts.

Features:

* Complies with 802.3af PoE standard
* 48 volt output voltage, 15.4 watts.

Technical data: * Complies with 802.3af PoE standard
* 48 volt output voltage, 15.4 watts.
* RJ45 LAN input
* LAN (RJ45) output, powered by pin: 4/5(+), 7/8(-)
* Cable connection: 10/100/1000 Mbps.
* The output has a current limitation, short circuit protection as well as automatic terminal device detection and classification.
* Own consumption: 1.6 W max.
* Power supply: 100-240V AC, 0.8A.
* Operating temperature: -5°C to 45°C.
* Dimensions (mm): 134(L) x 56(W) x 33(H)

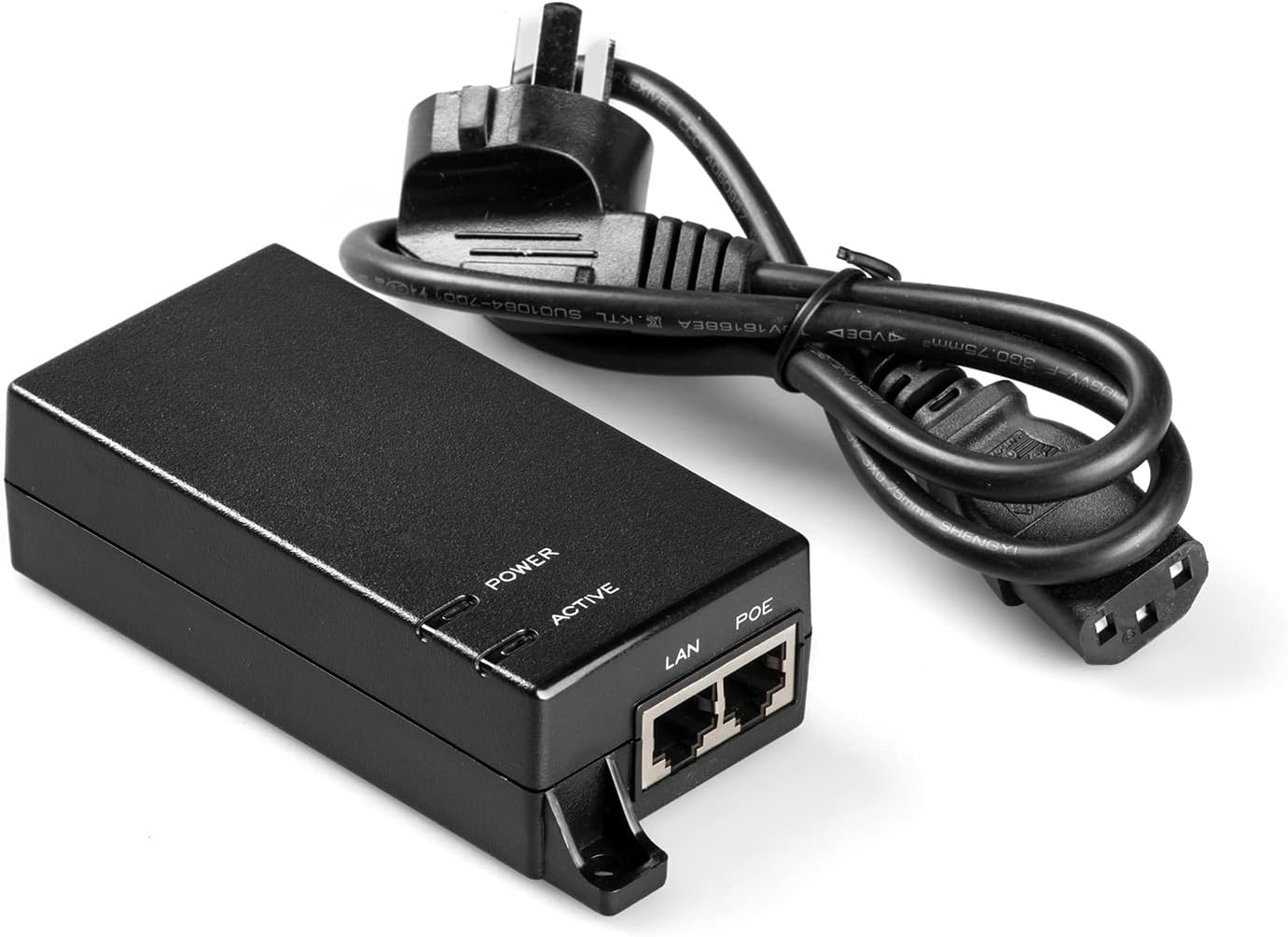

Package includes: * PoE Injector
* Quick start guide.
* Power cable.
