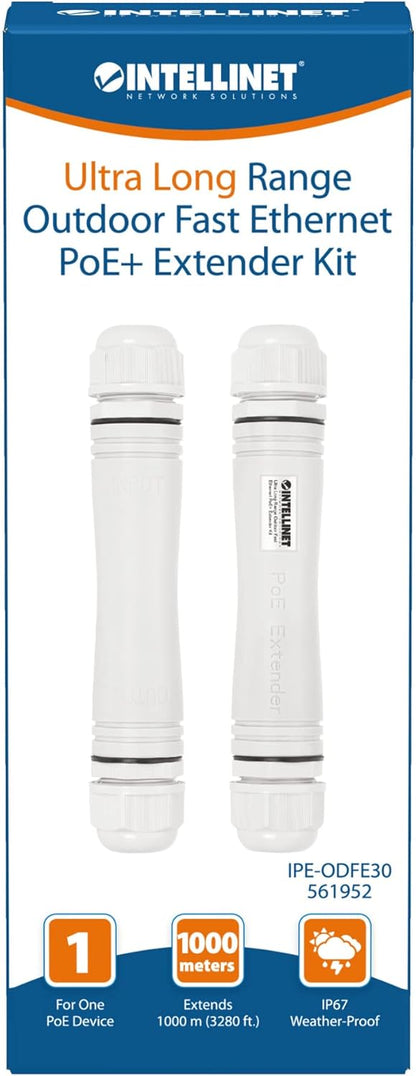

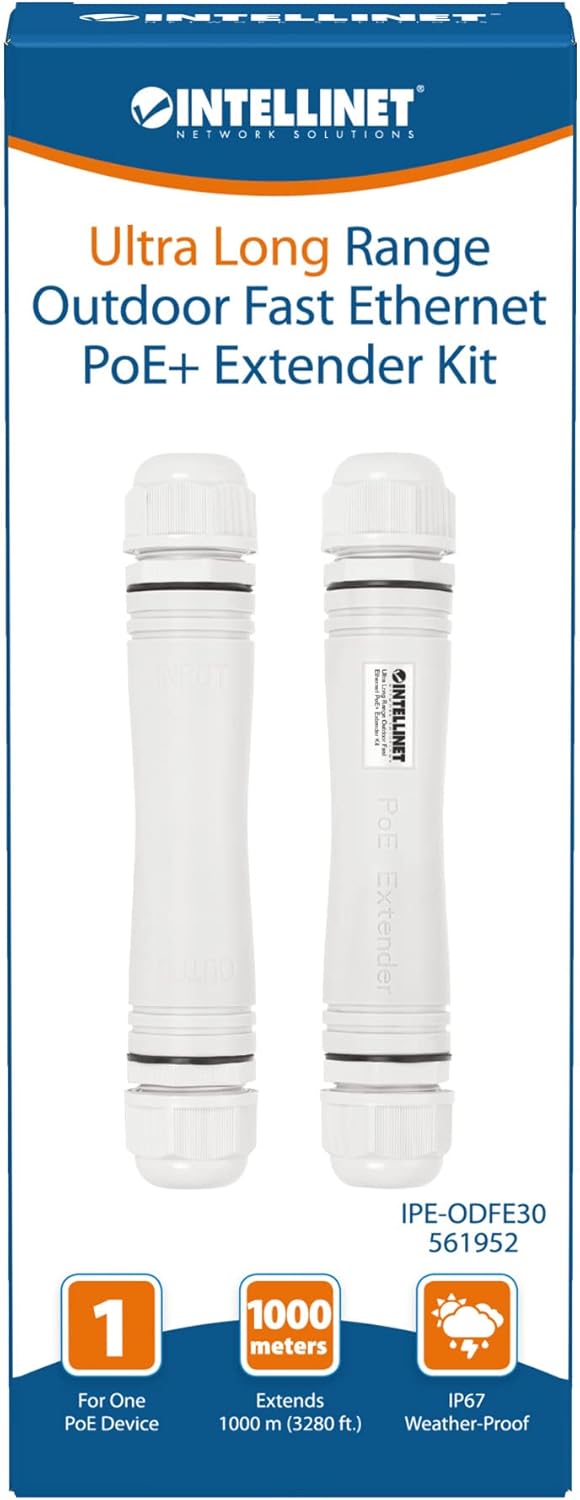

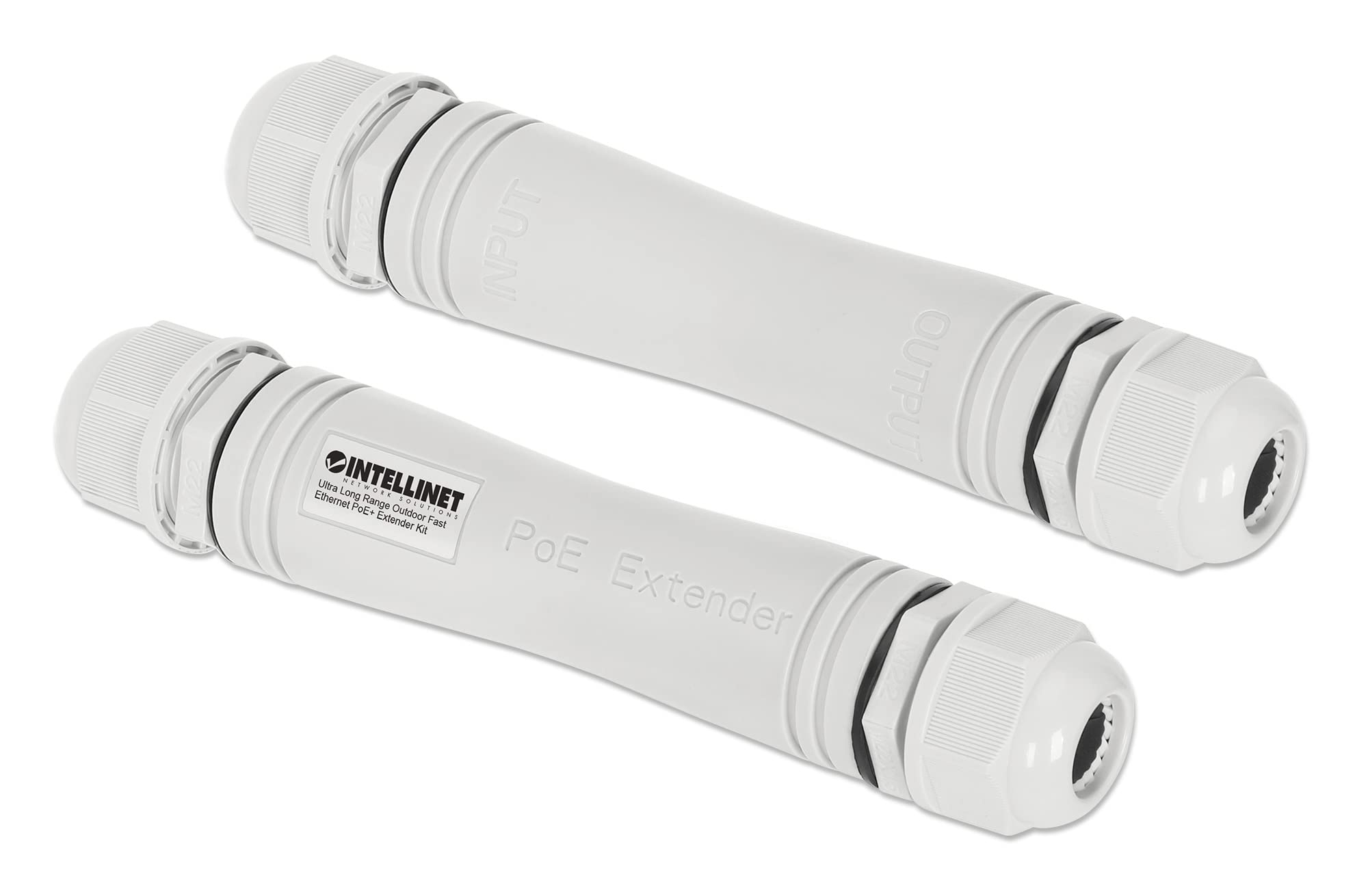

Intellinet 561952 Poe+ Fast Ethernet Outdoor Extension Kit White

• ✅

  Dimensions (W x L x H): 157 x 29 x 29 mm

• ✅

  Compatible with IEEE 802.3bt/at/af compliant PoE injectors and PoE (PSE) switches; Plug-and-play installation; no configuration required; Fully NDAA compatible

• ✅

  Transport data up to 1000m without packet loss; Kit includes two modules to cover maximum distance; Compatible with IEEE 802.3bt/at/af compliant (PD) powered devices such as network cameras, wireless access points, VoIP phones and more

• ✅

  Supports transfer speed up to 10/100Mbps; Short circuit protection, overload and high voltage; No additional power required; Powered directly by PoE input

• ✅

  High PoE range and weatherproof housing ideal for IP camera installations; Waterproof and dust protected IP67

Ultra Long Distance Power over Ethernet Extension / Repeater / Amplifier for a PoE range up to 1,000 m (3,280 ft.) - even in harsh outdoor conditions
The Intellinet Network Solutions Ultra Long Range Outdoor Fast Ethernet PoE+ Extender Kit adds up to 1,000 m (3,280 ft.) to the connection distance from a PoE source to an output device via Cat5e or Cat6 cable. It has an output power rating up to 30 watts, which is enough for many power-hungry PoE devices. Its high range and weatherproof housing is especially useful for outdoor IP surveillance camera deployments. This PoE repeater delivers up to 30 W at 100 Mbps over 300 m (984 ft.) or up to 15.4 W at 10 Mbps over 800 m (2625 ft.).

Designed for Outdoor Use
This PoE+ extender offers the right power and data connector for longer-distance applications and suits a wide variety of environments. Its weatherproof IP67 (waterproof and dustproof) rating and a wide operating temperature range of -10 - 55°C (14 - 131°F) make it able to withstand harsh outdoor conditions.

Power over Ethernet 802.3bt-compliant Input, 802.3at/af-compliant Output
Supporting the IEEE 802.3bt protocol with input power up to 95 W, this PoE+ Extender Kit provides up to 30 watts to a connected 802.3at-compliant device or 15 W to an 802.3af-compliant device, along with data up to Fast Ethernet speeds.

Reduced Wiring Costs
This PoE+ Extender helps avoid the expense of running AC power lines to a wireless access point, network camera or IP phone. Simply connect the extender to the LAN switch port through existing Cat5e/6/6a cables to deliver DC power as well as transfer data.

Safe Protection for your Expensive Network Equipment
The auto-sensing technology of this high-power PoE extender ensures that your products are protected from power problems like short circuits (short GND), current overloads and high voltages.

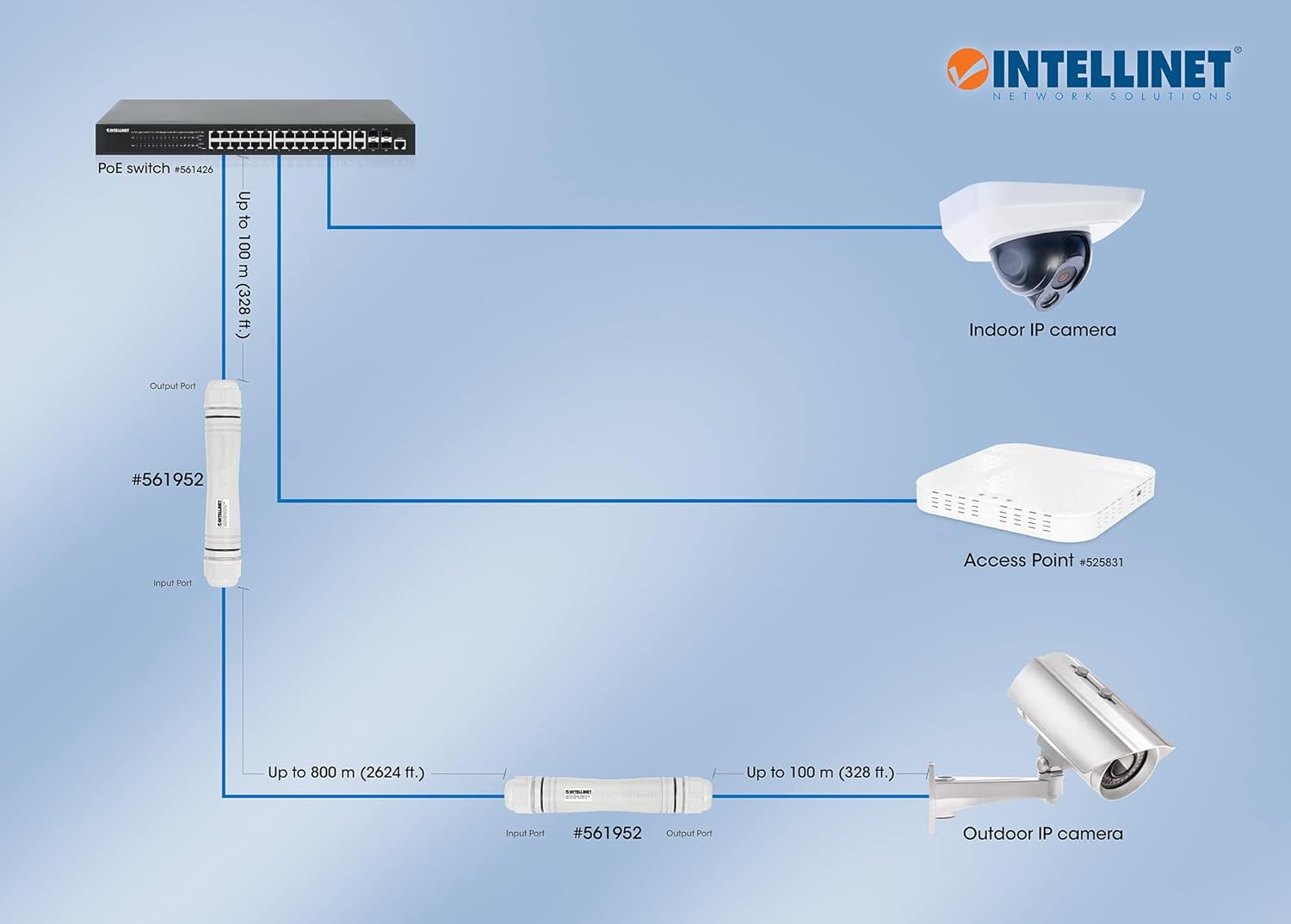

Simple Installation with Cascading
