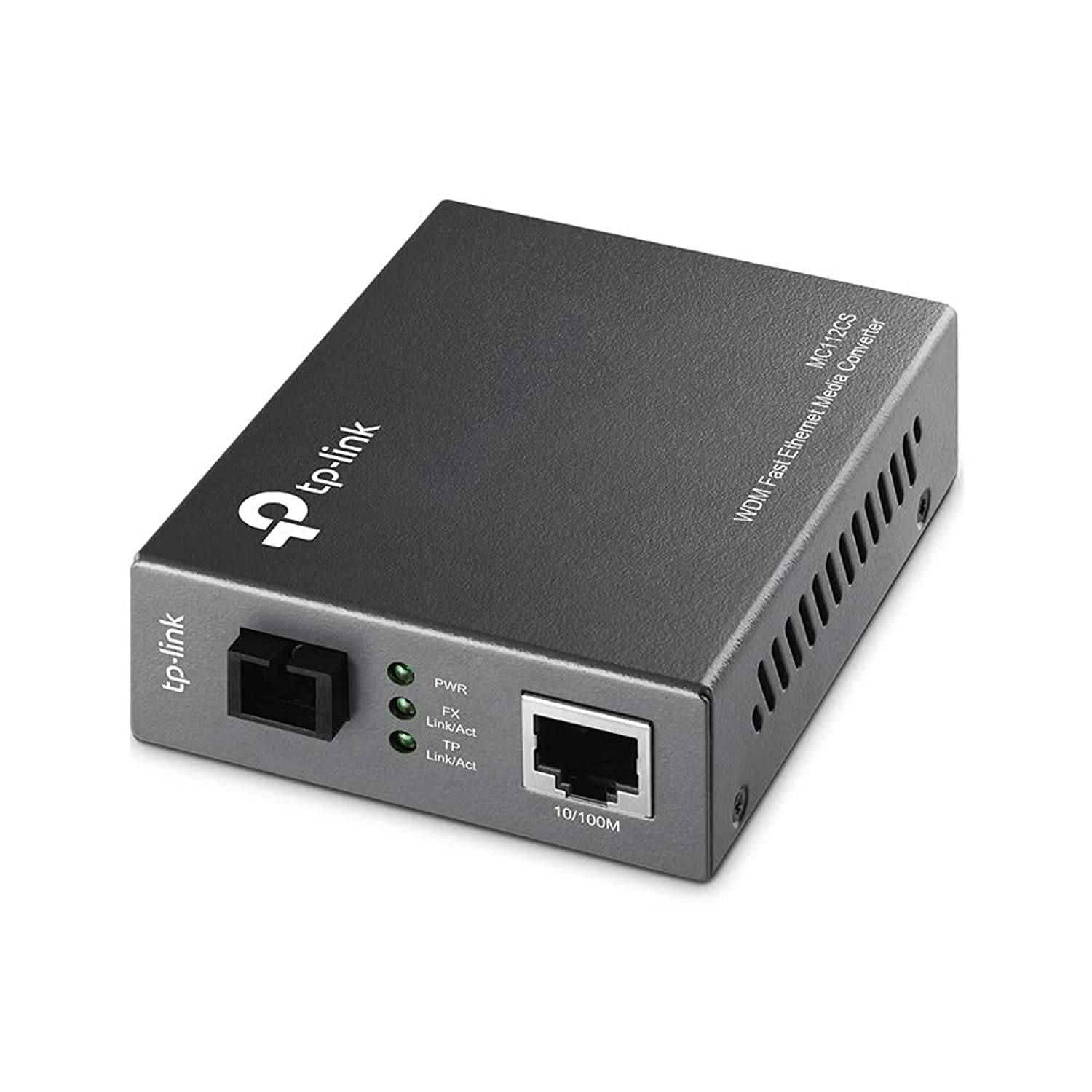

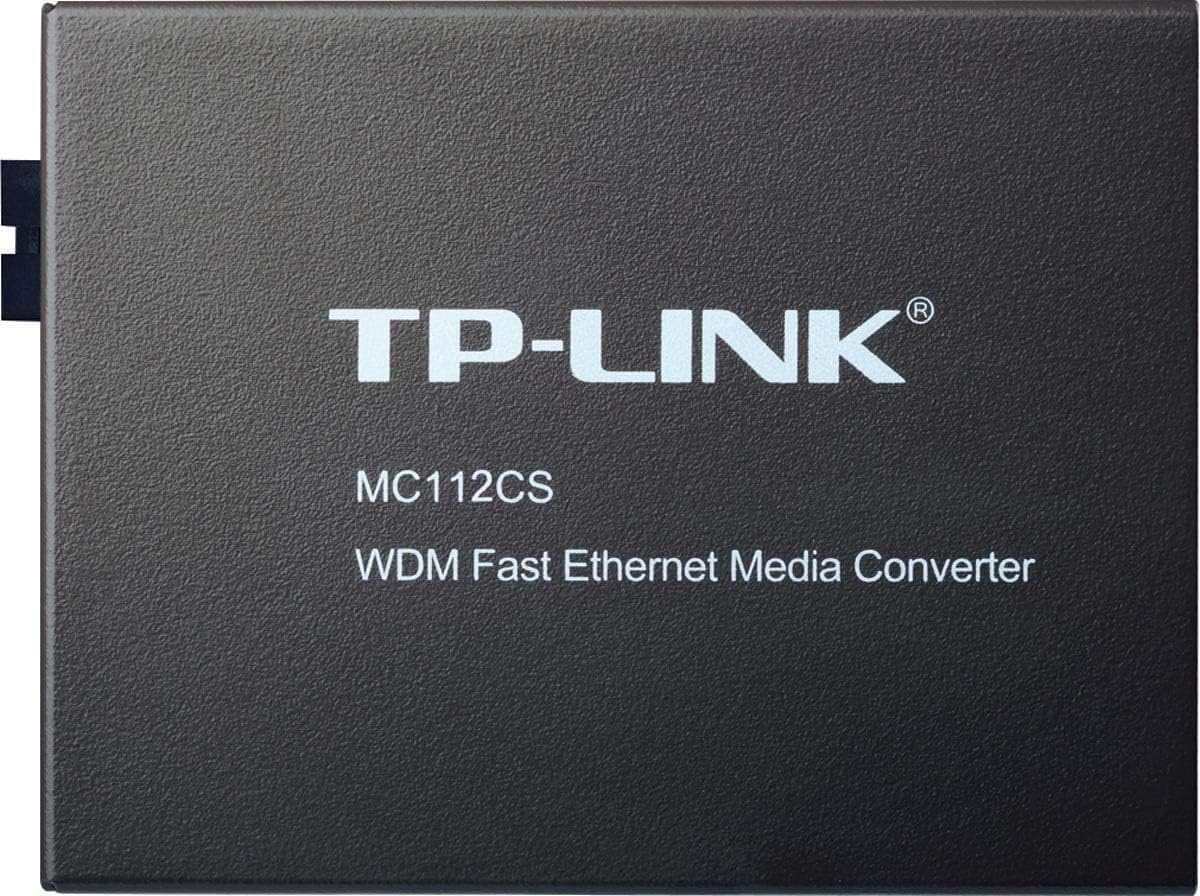

TP-Link 10/100 Mbps WDM Media Converter, Complies with 802.3u 10/100Base-TX, 100Base-FX Standards Extends Fiber Distance Up to 20 km (MC112CS

• Easy-view LED indicators provide status to monitor network activity easier
• External power supply
• Extend fibre distance up to 20 km
• Adopts WDM technology, transmitting and receiving data on one single fibre

PRODUCT DESCRIPTION


What This Product Does

The MC112CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Adopting WDM technology, MC112CS takes only one fiber cable to transmit and receive data, which will save half cabling cost for you. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC112CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC112CS supports long wave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on transferring data and at 1550nm on receiving data. So the other end device to cooperate with the MC112CS should work at 1550nm on transferring data and at 1310nm on receiving data. Another TP-LINK’s media converter MC111CS is just one of the examples to cooperate with MC112CS.

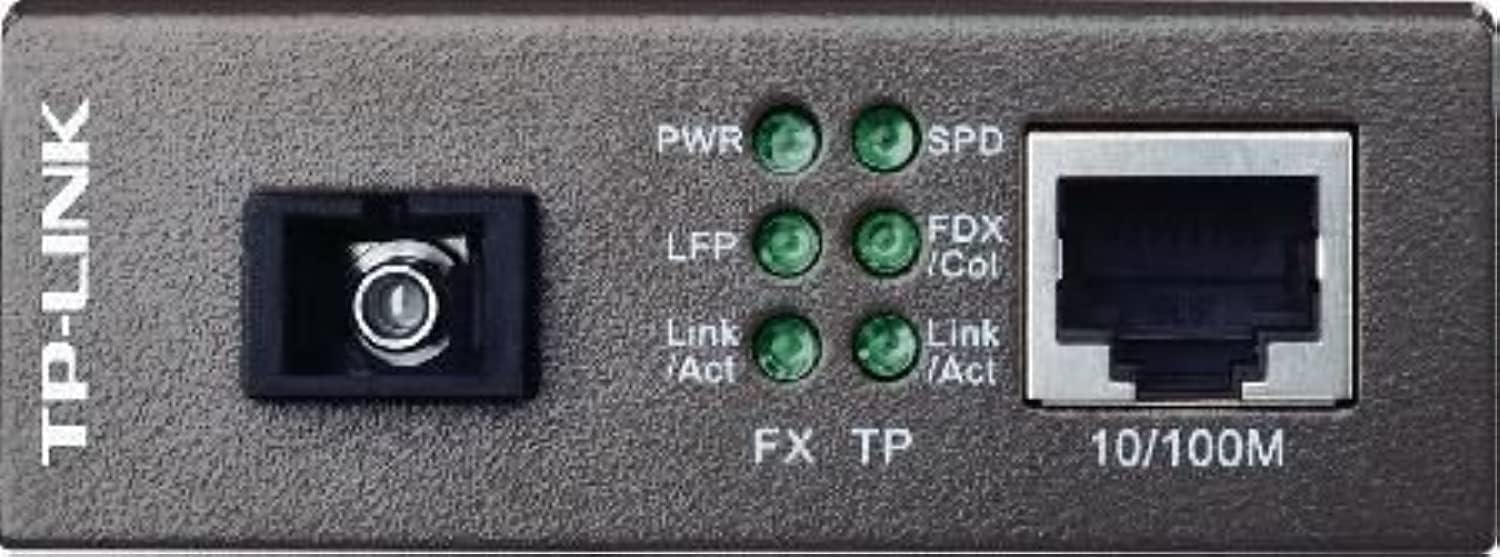

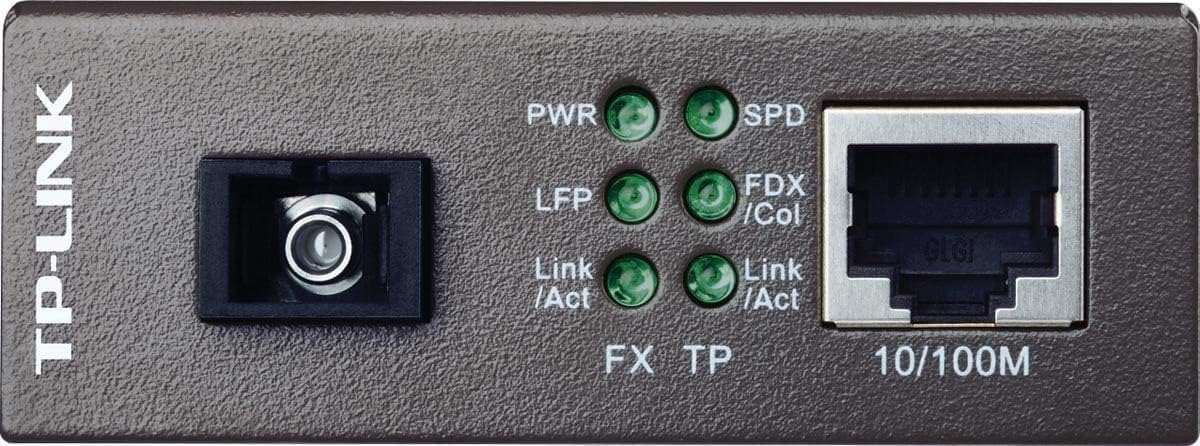

Other features of this module include the ability to be used as a standalone device (no chassis required), Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port, and front panel status LEDs. The MC112CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers.

Highlights:

∙ Complies with 802.3u 10/100Base-TX, 100Base-FX standards.

∙ Link Fault Pass-through and Far End Fault minimize the loss caused by link failure timely

∙ Adopts WDM technology, transmitting and receiving data on one single fiber



LEGAL DISCLAIMER
Product is sourced and shipped from the European Economic Area (EEA). Product is genuine original from manufacturer authorized distributors.

BOX CONTAINS
Fiber Converter
Power Adapter
User Guide
